TIG-AC/DC  Series

TIG-AC/DC Series

DESCRIPTION:

● Inverter technology with pulse function.

● Precise control for welding current, peak current, valley current, and arc ending current.

● Three phase input power supply, AC/DC output, energy saving.

● Switches selectable for 2T/4T TIG torch control and AC/DC output current.

● Excellent HF (high frequency) arc starting, deep penetration, strong compensation capability and little splash.

● Auto protection of anti-stick, over-heat and over current.



0
Views: 68

Details

Model

TIG-200AC/DC

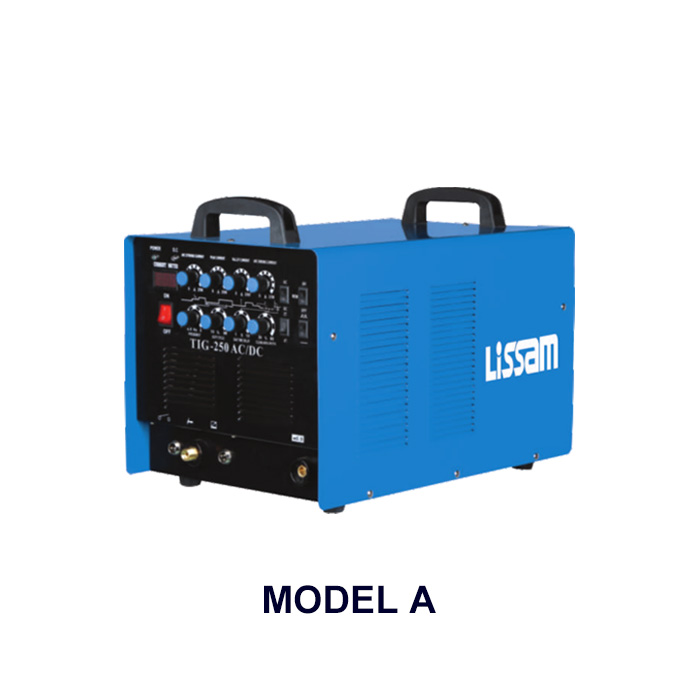

TIG-250AC/DC

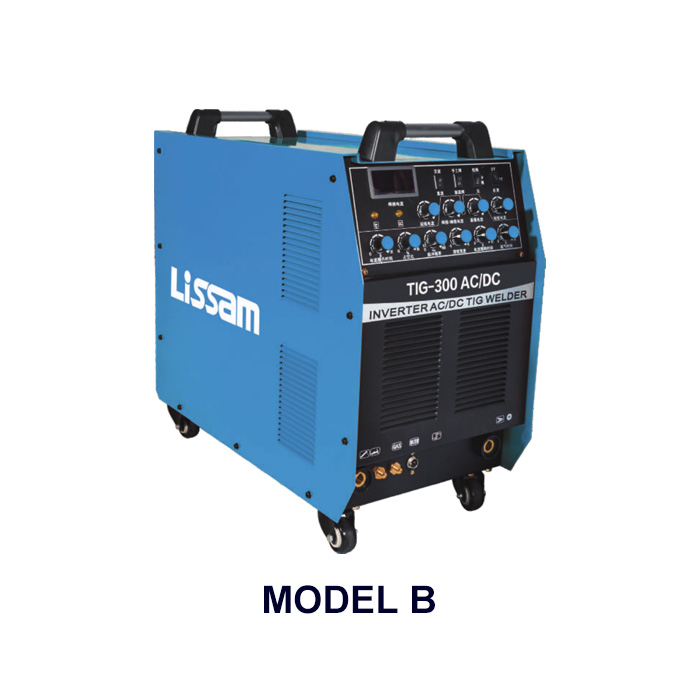

TIG-300AC/DC

TIG-400AC/DC

Rated Input Voltage (V)

230

230

400

400

No-load Voltage (V)

56

56

56

56

Current Range (A)

10-200

10-250

10-300

10-400

Fuse (A)

18

20

25

28

Duty Cycle (%)

60%

60%

60%

60%

Weight (Kg)

12

15

25

30
