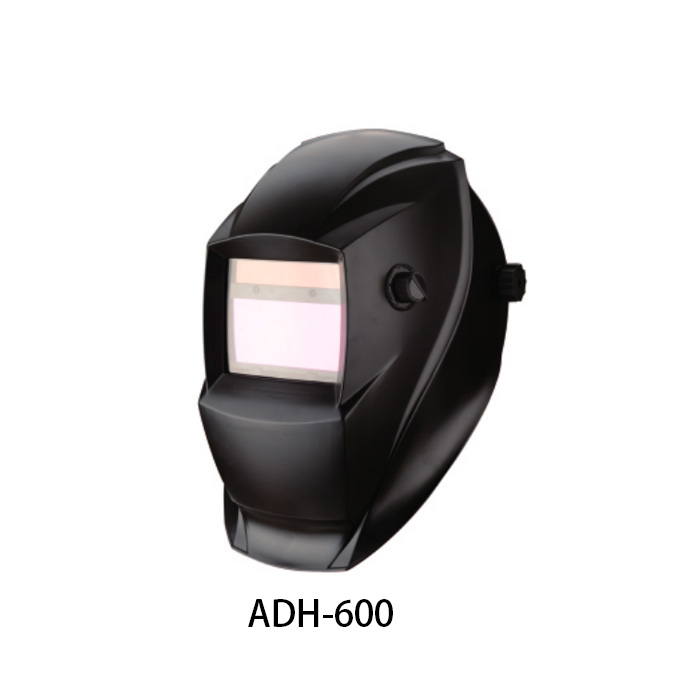

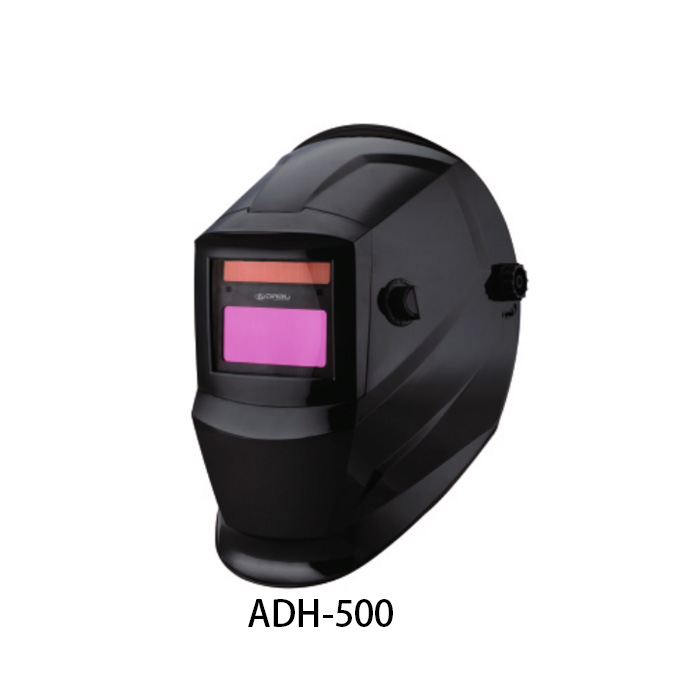

ADH-100 ADH-500 ADH-600

ADH-100 ADH-500 ADH-600

0
Views: 2,154

Details

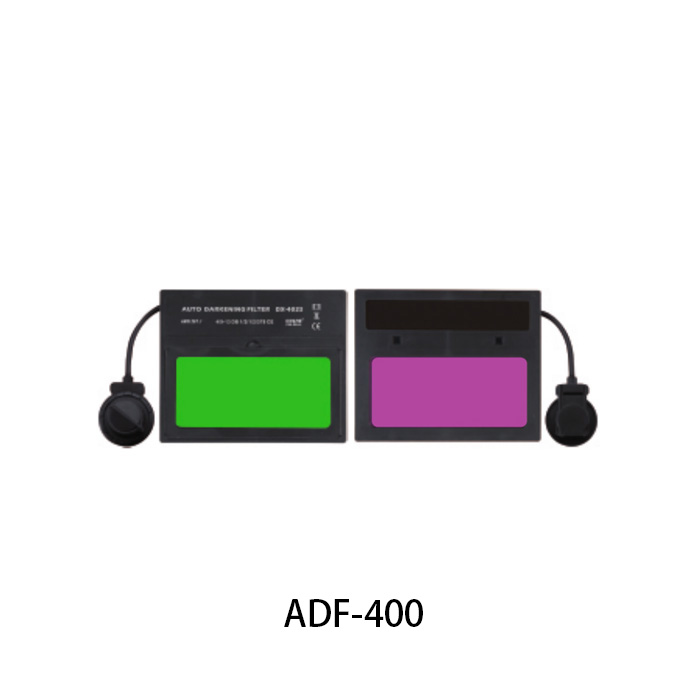

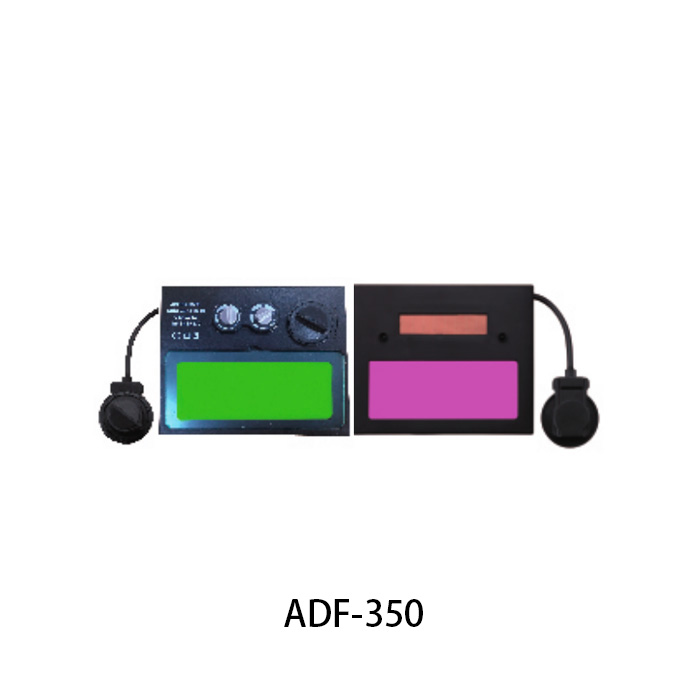

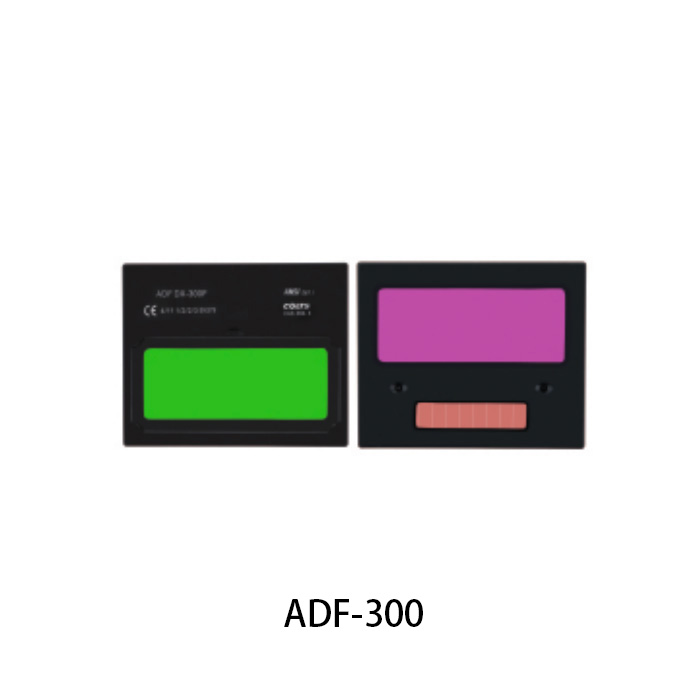

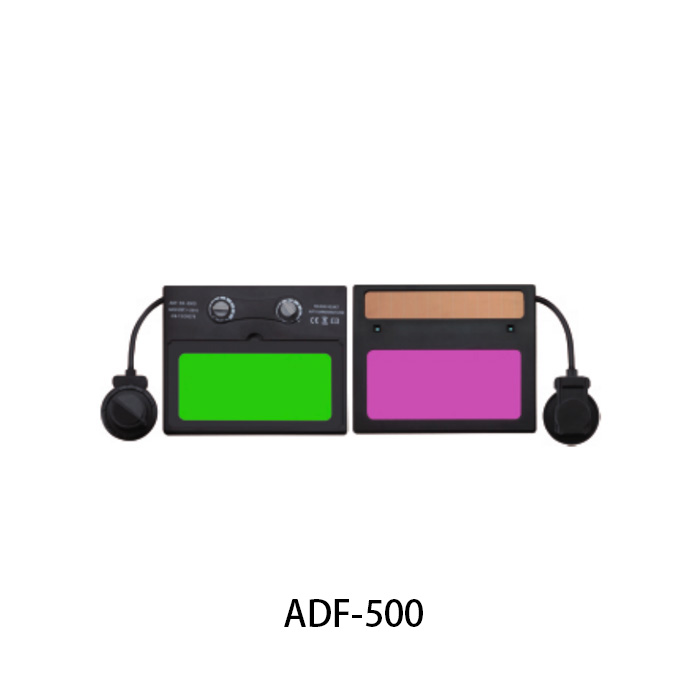

Technical Data ADF-300 ADF-350 ADF-400 ADF-500
Optical Class 1/1/1/2 1/1/1/2 1/2/1/2 1/2/1/2
Viewing Area 90 x 35mm 90 x 35mm 90 x 42mm 90 x 42mm
Cartridge Size 110 x90 x9mm 110x90 x 9mm 110 x90 x9mm 110x90 x 9mm
Arc Sensor 2 2 2 2
Light State DIN 4 DIN 4 DIN 4 DIN 4
Dark State Variable shade,9-13 Variable shade,9-13 Variable shade,9-13 Variable shade,9-13
Shade Control External,Variable External,Variable External,Variable External,Variable
Power On/Off Fully Automatic Fully Automatic Fully Automatic Fully Automatic
Sensitivity Control Unadjustable.Auto Low-High,by infinitely dial knob Unadjustable.Auto Low-High,by infinitely dial knob
UV/IR Protection DIN16 DIN16 DIN16 DIN16
Power Supply Solar cells.Re-chargeable
 battery No battery change required
Solar cells.Battery change required
 1xCR2032 lithium Bettery
Solar cells.Re-chargeable
battery No battery change required
Solar cells.Re-chargeable
battery No battery change required
Switching Time 1/5000S,from Light to Dark 1/5000S,from Light to Dark 1/5000S,from Light to Dark 1/5000S,from Light to Dark
Dark to Light 0.25-0.45S Auto 0.1-1 .OS by infintely dial knob 0.25-0.45S Auto 0.1-1 .OS by infintely dial knob
Low Amperage TIG ≥35amps(DC),≥35amps(AC) ≥20amps(DC),≥20amps(AC) ≥35amps(DC),≥35amps(AC) ≥10amps(DC),≥10amps(AC)
Grinding Function NO YES YES YES
Low Volume Alarm NO NO NO NO
ADF sef-check NO NO NO NO
Operating Tep. -5℃~+55℃ -5℃~+55℃ -5℃~+55℃ -5℃~+55℃
Storing Tep. -20℃~+70℃ -20℃~+70℃ -20℃~+70℃ -20℃~+70℃
Warranty 1 Year 1 Year 1 Year 1 Year
Weight 480g 480g 460g 490g
Packing Size 33 x 23 x 23cm 33 x 23 x 23cm 33 x 23 x 23cm 33 x 23 x 23cm
