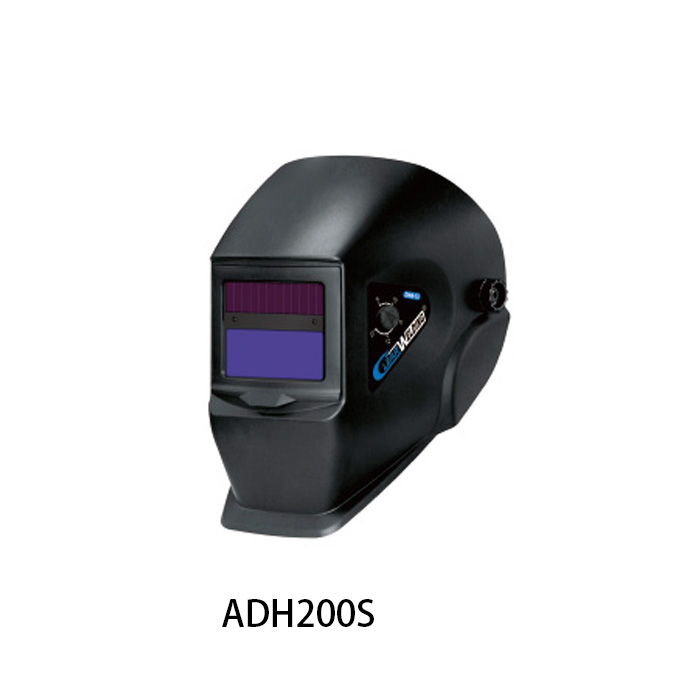

ADH200F ADH200S

Features	FIXED SHADE	VARIABLE SHADE
Model No.	ADH200F	ADH200S
Optical class	3/10:1/1/1/2 3/11:1/1/1/3	1/1/1/2
Viewing area	97 *47 mm	96*40mm
Size of cartridge	11090 5 mm	110909 mm
Lens shade	Fixed Shade 10/11	Shade 9-13
Light state	Shade 3	Shade 3.5
Shade control	——	External
Sensors	2	2
On/Off	Automatic	Automatic
Power supply	Solar cells, no battery change required	Solar cells, no battery change required
Switch time	1/4000 sec.	1/16.000 sec.
Sensitivity Control	——	adjust by infinite dial knob
Delay time(dark to light)	0.25-0.45s	0.1-1.0s by infinite dial knob
Grind mode	——	Yes
Low TIG amps rated	——	≥10 amps /DC; ≥10 amps/AC
Operating temperature	-10℃~+55℃	-10℃~+55℃
Storing temperature	-20℃~+70℃	-20℃~+70℃
Packaging	Color box	Color box
Application range	MIG;MAG/C02;SMAW; Air carbon cutting; TIG; PLASMA arc welding/cutting; Not for Laser Welding or Oxy/Acetylene Welding/Cutting; not for Grinding	Stick Welding (DC&AC), TIG( DC, DC Pulse). TIG AC(Pulse). Excellent low amperage TIG response, MIG/MAG, MIG/MAG Pulse, Plasma Cutting/ Welding,Grinding, Not for Laser Welding or Oxy/Acetylene Welding/Cutting
Standard	GS. DIN-Geprüft.CE, ANSI.CSA Approved	GS, DINplus.CE, ANSI, CSA Approved
