LBI 15

LBI 15

Technical Data



Rating:  180A CO2
              150A Mixed Gases
Duty Cycle:  60%
Wire size:    0.6-1.0mm

0
Views: 51

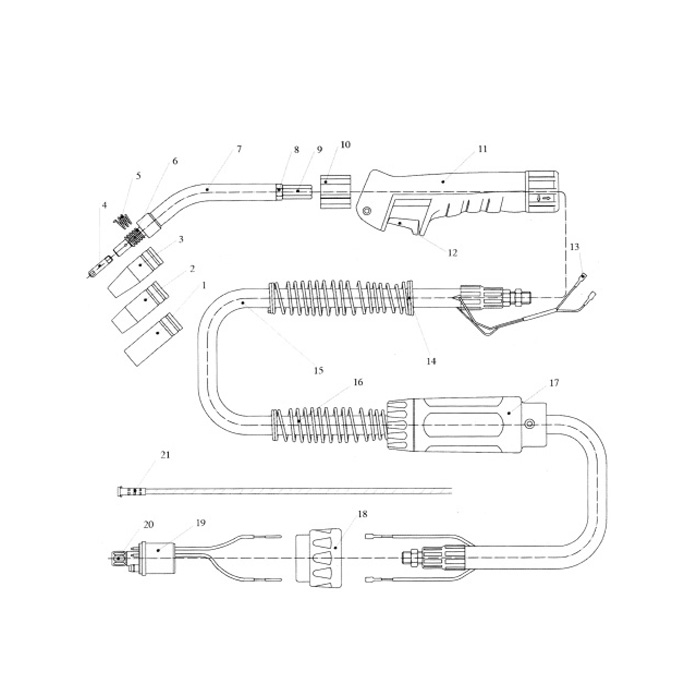

Details

No.

Description

Part No.



LBI15 Complete Torch-3M

LS 002.0449



LBI 15 Complete Torch-4M

LS 002.0450



LBI 15 Complete Torch-5M

LS 002.0451

1

Cylindrical NozzleΦ16mm

LS 145.0041

2

Conical Nozzle Φ 12mm

LS 145.0075

3

Tapered Nozzle Φ9.5mm

LS 145.0123

4

M6 X 25 X 0.6 Contact Tip,E-Cu

LS 140.0008



M6 X 25 X 0.8 Contact Tip,E-Cu

LS 140.0059



M6 X 25 X 0.9 Contact Tip,E-Cu

LS 140.0177



M6 X 25 X 1.0Contact Tip,E-Cu

LS 140.0253



M6 X 25 X 1.2 Contact Tip,E-Cu

——



M6 X 25 X 0.8 Contact Tip,E-Cu for Al.

LS 141.0002



M6 X 25 X 1.0 Contact Tip,E-Cu for Al.

LS 141.0007



M6 X 25 X 1.2 Contact Tip,E-Cu for Al.

——



M6 X 25 X 0.6 Contact Tip, CuCrZr

LS 140.0855



M6 X 25 X 0.8 Contact Tip, CuCrZr

LS 140.0062



M6 X 25 X 1.0 Contact Tip, CuCrZr

LS 140.0258

5

Nozzle Spring

LS 002.0058

6

Gas Nozzle Holder

LS 002.0078

7

Swan Neck

LS 002.0009

8

Hexagon Nut M10x1

LS 001.0009

9

Nut

LS 400.0114

10

Plastic Nut

LS 400.0044

11

Handle

LS 180.00765

12

Switch

LS 185.00315

13

Switch Connector Collet

LS 175.A022

14

Cable Support

LS 500.0225

15

Cable Assembly(16mm²),3M





Cable Assembly(16mm²),4M





Cable Assembly(16mm²),5M



16

Cable Support

LS 500.0255

17

Rear Handle

LS 500.0048

18

Adaptor Nut

LS 501.0213

19

Central Connector KZ-2

LS 126.0003

20

Nut M10×1

LS 501.0082

21

Insulated Liner, For wire Φ0.6-0.8,3.5M

LS 124.0011



4.5M

LS 124.0012



5.5M

LS 124.0015



Insulated Liner, For wire Φ1.0-1.2,3.5M

LS 124.0026



4.5M

LS 124.0031



5.5M

LS 124.0035



Teflon Liner, For wire Φ0.6-0.8,3.5M

LS 126.0005



4.5M

LS 126.0008



5.5M

LS 126.0011



Teflon Liner, For wire Φ1.0-1.2,3.5M

LS 126.0021



4.5M

LS 126.0026



5.5M

LS 126.0028
