LBN200

LBN200

Technical Data

Rating: 200A CO2
             150A Mixed Gases
Duty Cycle:  60%
Wires :0.030"-0.045"(0.8-1.2mm).

0
Views: 33

Details

Model
Description Part Number
Welding Gun c/w Euro Fitting 10ft/3m 12ft/3.6m 15ft/4.5m
  LBN300-10 LBN300-12 LBN300-15
Nozzles
No. Part Number Description
A 4391 Brass Nozzle 5/8"
  4392 Brass Nozzle 1/2"
  4393 Copper Nozzle 5/8"
  4394 Copper Nozzle 1/2"
Contact Tips
B 7488 Contact Tip 0.030"/0.8mm Ecu
  7489 Contact Tip 0.035"/0.9mm Ecu
  7496 Contact Tip 0.040"/1.0mm Ecu
  7490 Contact Tip 0.045"/1.2mm Ecu
Liners
C 43110 035"-0.45"/0.9-1.2mm x 10ft/3m / Steel Liner.035"-.045/0.9-1.2mm x 10ft/3m
  43115 035"-0.45"/0.9-1.2mm x 15ft/4.5m / Steel Liner.035"-.045/0.9-1.2mm x 15ft/4.5m
  43110T 035"-0.45"/0.9-1.2mm x 10ft/3m / Teflon Liner.035"-.045/0.9-1.2mm x 10ft/3m
  43115T 035"-0.45"/0.9-1.2mm x 15ft/4.5m/Teflon Liner.035"-.045/0.9-1.2mm x 15ft/4.5m

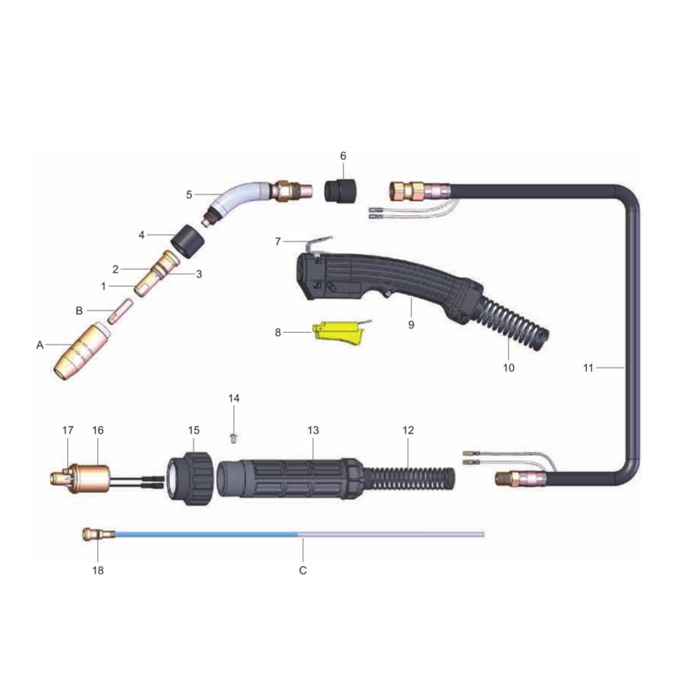

Compontents
No. Part Number Description
1 4335 Gas Diffuser
2 Q1401413 Circlip For 4335
3 Q512518S O-Rina 12.5x 1.8
4 4323 Rubber Cap
5 4786 Gun Neck
6 4780 Insulating Nut
7 EG0002 Hanger Hook
8 BEJ2005 Trigger Switch
9 BEH2101 Handle
10 HS2101 Front Spring Cable Support
11 BEL2010 Cable Assembly 10ft/3m
  BEL2012 Cable Assembly 12ft/3.6m
  BEL2015 Cable Assembly 15ft/4.5m
12 ES2201 Back Spring Cable Support
13 EH2201 Back Handle
14 EH2211 Screw M4x6
15 EP3001 Gun Plug Nut
16 BEU2001 Bernard Euro Gun Plug
17 Q504010 O-Ring 4x1
18 Q505217 O-Ring 5.28x1.78

Denoter Standard build
