LBN300

LBN300

Technical Data

Rating:  300A CO2
             200A Mixed Gases
Duty Cycle: 60%
Wires :0.030"-0.045"(0.8-1.2mm).

0
Views: 33

Details

Model
Description Part Number
Welding Gun c/w Euro Fitting 10ft/3m 12ft/3.6m 15ft/4.5m
  LBN300-10 LBN300-12 LBN300-15
Nozzles
No. Part Number Description
A 4391 Brass Nozzle 5/8"
  4392 Brass Nozzle 1/2"
  4393 Copper Nozzle 5/8"
  4394 Copper Nozzle 1/2"
Contact Tips
B 7488 Contact Tip 0.030"/0.8mm Ecu
  7489 Contact Tip 0.035"/70.9mm Ecu
  7496 Contact Tip 0.040"/1.0mm Ecu
  7490 Contact Tip 0.045"/1.2mm Ecu
Liners
C 43110 Steel Lmer.035u".045/0.9-1.2mm x  10ft/3m
  43115 Steel Liner.035".045/0.9-1.2mm x 15ft/4.5m
  43110T Teflon Uner.035".045/0.9-1.2mm x 10ft/3m
  43115T Teflon Liner.OSS".045/0.9-1.2mm x 15ft/4.5m

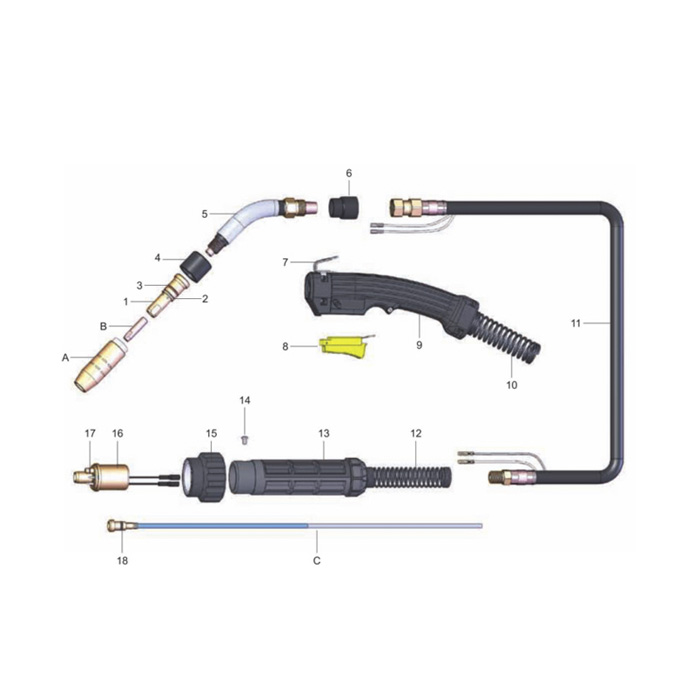

Compontents
No. Part Number Description
1 4335 Gas Diffuser
2 Q1401413 Circlip For 4335
3 Q512518S O-Rina 12.5x1.8
4 4323 RubberCaD
5 4786 Gun Neck
6 4780 Insulatinq Nut
7 EG0002 HanqerHook
8 BEJ2005 Trigger Switch
9 BEH2101 Handle
10 HS2101 Front Spring Cable Support
11 BEL2010 Cable Assembly 10ft/3m
  BEL2012 Cable Assembly 12ft/3.6m
  BEL2015 Cable Assembly 15ft/4.5m
12 ES2201 Back Spring Cable Support
13 EH2201 Back Handle
14 EH2211 Screw M4 x6
15 EP3001 Gun Plug Nut
16 BEU2001 Bernard Euro Gun Plug
17 504010 O-Ring 4x1
18 Q505217 O-Ring 5.28x1.78

Denoter Standard build
