LOX450

LOX450

Technical Data



Rating: 200A CO2
             160A Mixed Gases
Duty Cycle:  60%
Wire size: 0.8-1.2mm

0
Views: 39

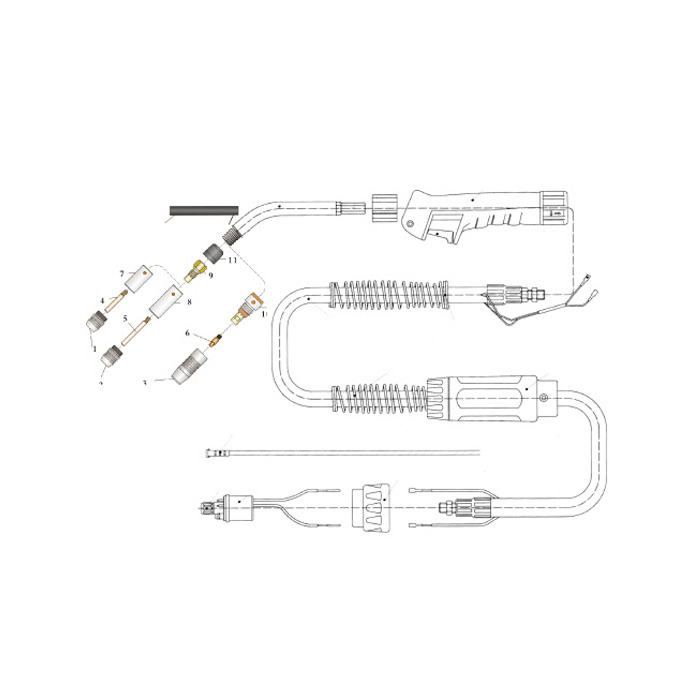

Details

No.

Description

Part No.



LPA 200 Complete Torch-3M

YT-20CS3



LPA 200 Complete Torch-4M





LPA 200 Complete Torch-5M



1

Cylindrical Nozzle Φ 15mm



2

Conical Nozzle Φ 13mm



3

Insulator


4

Self-insulated Nozzle Φ 13mm

TGN01208
5

M6 x 45 x 0.8 Contact Tip,E-Cu




M6 x 45 x 0.9 Contact Tip,E-Cu




M6 x 45 x 1.0 Contact Tip,E-Cu




M6 x 45 x 1.2 Contact Tip,E-Cu




M6 x 45 x 0.8 Contact Tip, CuCrZr

TET00841


M6 x 45 x 0.9 Contact Tip, CuCrZr

TET00958


M6 x 45 x 1.0 Contact Tip, CuCrZr

TET01054


M6 x 45 x 1.2 Contact Tip, CuCrZr

TET01266
6

Contact Tip Holder



7

Swan Neck Separable



8

Swan Neck

TCU20111

9

Handle



10

Switch



11

Swan Neck Holder



12

Clamp



13

Front Cable Support



14

Cable Assembly(18mm),3M/4M/5M



15

Back Cable Support



16

Switch Connector Collet



17

Cable Connector Rear



18

Gas Inlet Adaptor Assemble



19

Control Lead Plug



20

Nut 9/16-18" UNF



21

Rear Handle



22

Steel Liner, For wire Φ 0.8-1.0,3.5M





Steel Liner, For wire Φ 0.8-1.0,4.5M





Steel Liner, For wire Φ 0.8-1.0,5.5M
