LPA 500A

LPA 500A

Technical Data



Rating: 500A CO2
             420A Mixed Gases
Duty Cycle:  60%
Wire size: 0.9-1.2mm

0
Views: 44

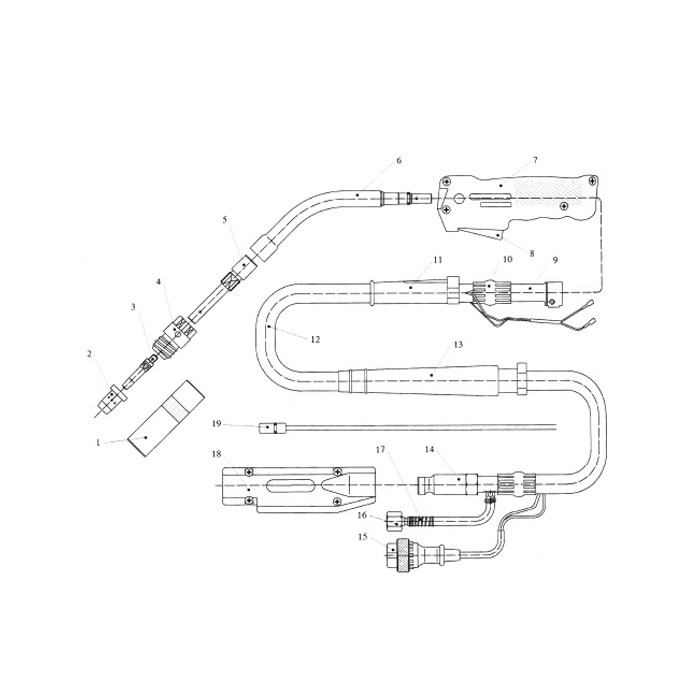

Details

No.

Description

Part No.



LPA 500 Complete Torch-3.5M

YT-50CS3



LPA 500 Complete Torch-5M

YT-50CSM3



LPA 500 Complete Torch-5.5M

YT-50CSL3

1

Cylindrical Nozzle Φ 19mm

TGN00014

2

Gas Diffuser

TGN00902
3

M6 X 45 X 1.2 Contact Tip,E-Cu

TET01266


M6 X 45 X 1.4 Contact Tip,E-Cu

TET01433


M6 X 45 X 1.6 Contact Tip,E-Cu

TET01676


M6 X 45 X 1.2 Contact Tip, CuCrZr




M6 X 45 X 1.4 Contact Tip, CuCrZr




M6 X 45 X 1.6 Contact Tip, CuCrZr


4

Insulator

TFZ50107
5

Contact Tip Holder,E-Cu





Contact Tip Holder,Brass



6

Swan Neck



7

Handle



8

Switch



9

Swan Neck Holder



10

Clamp



11

Front Cable Support



12

Cable Assembly(37mm²),3M/4M/5M



13

Back Cable Support



14

Cable Connector Rear



15

Control Lead Plug



16

Nut 9/16-18" UNF



17

Gas Inlet Adaptor Assem



18

Rear Handle



19

Steel Liner, For wire Φ 0.8-1.0,3.5M

TDT00054



Steel Liner, For wire Φ 0.8-1.0,4.5M





Steel Liner, For wire Φ 0.8-1.0,5.5M
