LTW-1

LTW-1

Technical Data

Rating: 180A CO2
125A Mixed Gases
Duty Cycle: 60%
wires:(0.023"-0.045")0.6-1.2mm.

0

Views: 530

Details

Model
Description	Part Number
	3m	4m	5m
Welding Gun c/w Euro Fitting	LTW1-3E	LTW1-4E	LTW1-5E
Welding Gun c/w Tweco Fitting	LTW1-3T	LTW1-4T	LTW1-5T
Welding Gun c/w Lincoln Fitting	LTW1-3L	LTW1-4L	LTW1-5L
Welding Gun c/w Miller Fitting	LTW1-3M	LTW1-4M	LTW1-5M

Nozzles
No.	Part Number	Description
A	21-37	Nozzle Self Insulated
	21-50	Nozzle Self Insulated
	21-62	Nozzle Self Insulated
	21-37F	Nozzle Self Insulated
	21-50F	Nozzle Self Insulated
	21-62F	Nozzle Self Insulated
	LA8201	Nozzle Sel Shielding

Contact Tips
C	11-23	Contact Tip 0.023"/0.6mm Ecu
	11-30	Contact Tip 0.030"/0.8mm Ecu
	11-35	Contact Tip 0.035"/0.9mm Ecu
	11-40	Contact Tip 0.040"/1.0mm Ecu
	11-45	Contact Tip 0.045"/1.2mm Ecu

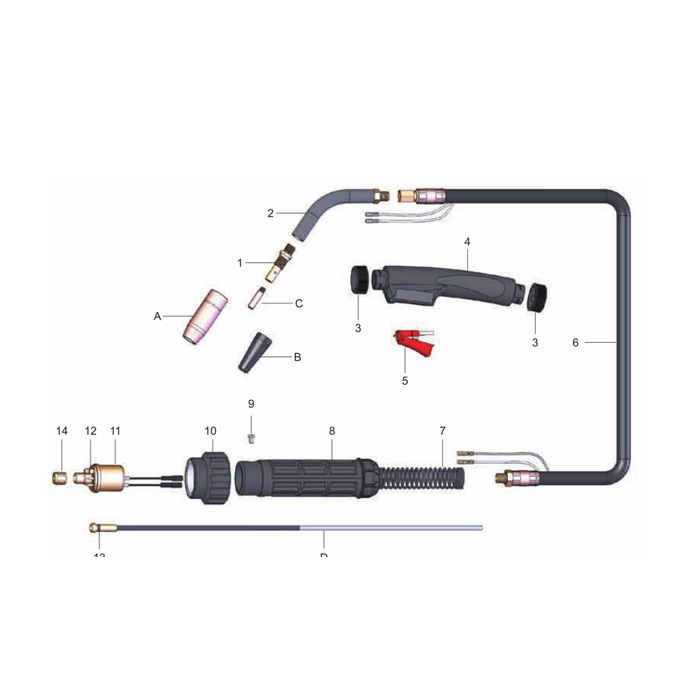

Compontents
No.	Part Number	Description
1	51	Gas Diffuser
2	61-45	Conductor Tube 45°
	61-55	Conductor Tube 55°
3	EH-1111	Locking Nut
4	EH-1101	Handle
5	EJ0003	Trigger
6	TEL 1030	Cable assembly 3m
	TEL 1040	Cable assembly 4m
	TEL 1050	Cable assembly 5m
7	ES2101	Back Spring Cable Support
8	EH2101	Gun Plug Housing
9	EH2211	Screw M4x6
10	EP2001	Gun Plug Nut
11	TEU1001	Tweco Euro Gun Plug
12	Q504010	O-Ring 4x 1
13	Q504018	0-Ring4 x 1.8
14	TEU1011	NutM11 x1

Liners
D	42-3035-15	Steel Uner0.030"-0.035"/0.8-0.9mm x 15ft
	42T-3035-15	Teflon Lif>er0.030"-0.035"/0.8-0.9mm x 15ft

Denoter Standard build
