LTW-2

LTW-2

Technical Data

Rating:  200A CO2
              150A Mixed Gases
Duty Cycle: 60%
wires:0.6-1.2mm(0.023"-0.045")

0
Views: 34

Details

Model
Description Part Number
  3m 4m 5m
Welding Gun c/w Euro Fitting LTW2-3E LTW2-4E LTW2-5E
Welding Gun c/w Tweco Fitting LTW2-3T LTW2-4T LTW2-5T
Welding Gun c/w Lincoln Fitting LTW2-3L LTW2-4L LTW2-5L
Welding Gun c/w Miller Fitting LTW2-3M LTW2-4M LTW2-5M
Nozzles
No. Part Number Description
A 22-50 Nozzle Adjustable
  22-62 Nozzle Adjustable
B 22-50F Nozzle Self Insulated
C 24CT50S Nozzle Fixed Coarse Thread
  24CT62S Nozzle Fixed Coarse Thread
  24CT75S Nozzle Fixed Coarse Thread
D 23-50 Nozzle Self Insulated
  23-62 Nozzle Self Insulated
  23-75 Nozzle Self Insulated
E 24A50 Nozzle Adjustable
  24A62 Nozzle Adjustable
  24A75 Nozzle Adjustable
Contact Tips
F 14-23 Contact Tip 0.023"/0.6mm Ecu
  14-30 Contact Tip 0.030"/0.8mm Ecu
  14-35 Contact Tip 0.035"/0.9mm Ecu
  14-40 Contact Tip 0.040"/1.0mm Ecu
  14-45 Contact Tip 0.045"/1.2mm Ecu
  14H-35 Contact Tip 0.035"/0.9mm Ecu HD
  14H-40 Contact Tip 0.040"/1.0mm Ecu HD
  14H-45 Contact Tip 0.045"/1.2mm Ecu HD
Compontents

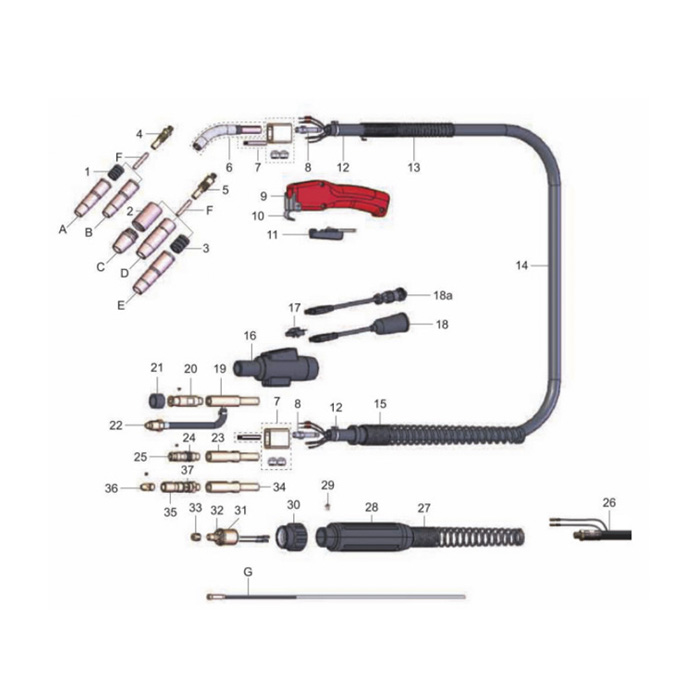

No. Part Number Description
1 32 Adjustable Nozzle Insulator
2 34CT Nozzle Insulator Coarse Thread
3 34A Adjustable Nozzle Insulator
4 52 Gas Diffuser
5 52FN Gas Diffuser
6 62A-45J Jacketed Conductor Tube 45°
  62A-60J Jacketed Conductor Tube 60°
7 102 Cable Connector Block Assembly
8 62N Gas Nipple
9 84HD-R Handle w/Screws,Red
10 154HD HanqerHook
11 92 Trigger Switch
12 144-6S Cable Hose Clamp
13 HDL-2030 Front Spring Cable Support
14 HDL-2040 Cable Assembly 10m
  HDL-2050 Cable Assembly 12m
    Cable Assembly 15m
15 R185-S Back Spring Cable Support
16 R185-H Gun Plufl Housina w/Screws
17 194 Connector Tab Assembly
18 LAK-354 2 Pin Plup Assembly
18a MSAK-354 Miller 2 Pin Plug Assembly
19 R172-UAG Connector Pulg w/Gas Hole
20 R174-L Connector,Lincoln
21 HDN0201 Connector Insulator
22 HDN0201 Gas Hose Assembly
23 R172-UA Connector Pulg
24 Q511818 O-Ring 11.8 x 1.8
25 R174-T Connector,Tweco
26 HDL2030E Cable Assembly 10m, Use w/Euro Fitting
  HDL2040E Cable Assembly 12m, Use w/Euro Fitting
  HDL2050E Cable Assembly 15m. Use w/Euro Fitting
27 EA0374 Spring
28 MT0077 Rear End Assembly Complete
29 EH2211 Screw M4x6
30 EP3001 Gun Plug Nut
31 TEU1001 Tweco Euro Gun Plug
32 Q504010 O-Ring 4 x 1
33 TEU1011 NutM11 x1
34 R172-UA Connector Pulg
35 R174-M Connector
36 174M-N Contact Tip
37 Q512526 O-Ring 12.5x2.65
