27 Series

27 Series

Technical Data

Rating:  500A DC
Duty Cycle:  100%
Tungsten Rod: 1.0-6.4mm

0
Views: 51

Details

No. Description Part No.
  WP-27 Torch  WP-27-1(4M)
  WP-27 Long Torch  WP-27-1L(4M)
1 Torch Body (8"Long,Include Shaft and boot) WP-27
  Torch Body(20"Long,Include Shaft and boot) WP-27Long)
2 Collet 57N46,1.6mm
    57N47,2.4mm
    57N48,3.2mm
    57N49,4.0mm
3 Gas Lens 49V23,1.6mm
    49V24.2.4mm
    49V25,3.2mm
    49V26,4.0MM
4 Gasket 57N56
5 Ceramic Nozzle 57N75,10mm
    57N74,13mm
    53N88,16mm
    53N87,19mm
    53N89,Short
6 Cable Assembly
7 Cable Assembly Cover

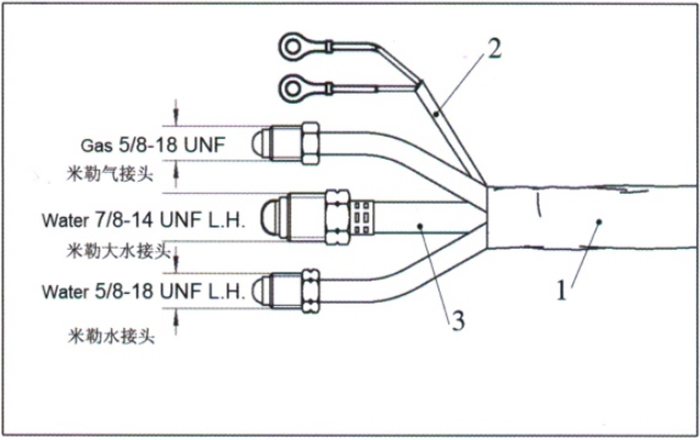

WP-27 Torch Terminations

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 12mm²,4M(12.5 feet)
  Cable 12mm²,8M(25 feet)
4 Cable Adapter
5 Nut Cup(SW19)

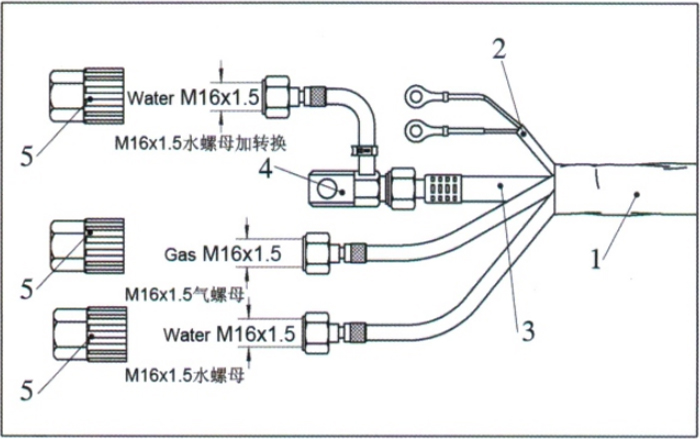

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 12mm²,4M(12.5 feet)
  Cable 12mm²,8M(25 feet)
