9 Series

9 Series

Technical Data



Rating: 125A DC
             80A AC
Duty Cycle:  60%
Tungsten Rod:  0.5~2.4mm

0
Views: 149

Details

No. Description Part No.

  WP-9 Torch(Gas and Cable Whole) WP-9-1(4M)
  WP-9 Torch(Gas and Cable Whole) WP-9-l(8M)
  WP-9 Torch(Gas and Cable Separate) WP-9-2(4M)
  WP-9 Torch(Gas and Cable Separate) WP-9-2(8M)
  Torch Body WP-9
1a Torch Body(Flexible) WP-9F
1b Torch Body(Valve) WP-9V
1c Torch Body(Flexible and Valve) WP-9FV
1d Torch Body(Pencil) WP-9P
2 Long Back Cap 41V24
3 Medium Back Cap 41V35
4 Short Back Cap 41V33
5 Gasket 598882
6 Large Oia. Gas Lens Insulator 54N63-20
7 Collet 13N20.0.5mm
    13N21,1.0mm
    13N22,1.6mm
    13N22M,2.0mm
    13N23,2.4mm
8 Large Dia. Gas Lens Collet 13N20L,0.5mm
    13N22L.1.6mm
    13N23L.2.4mm
9 Collet Body 13N25,0.5mm
    13N26,1.0mm
    13N27,1.6mm
    13N27M,2.0mm
    13N28,2.4mm
10 Small Gas Lens 45V41,0.5mm
    45V42,1.0mm
    45V43,1.6mm
    45V43M.2.0mm
    45V44.2.4mm
11 Large Stubby Gas Lens 45V0204S
    45V116S,1.6mm
    45V64S,2.4mm
12 Ceramic Nozzle 13N08,6mm
    13N09,8mm
    13N10,10mm
    13N11,11mm
    13N12,13mm
    13N13,16mm
13 Long Ceramic Nozzle 796F70.5mm
    796F71.6mm
    796F72,8mm
    796F73.10mm
14 Extra Long Ceramic Nozzle 796F74,5mm
    796F75,6mm
    796F76,8mm
    796F77,10mm
15 Ceramic Nozzle 53N58,6mm
    53N59,8mm
    53N60,10mm
    53N61,11mm
    53N61S,13mm
16 Large Dia. Ceramic Nozzle 57N75,10mm
    57N74,13mm
    53N88,16mm
    53N87,19mm
17 Switch(with wire)
18 Handle 105Z55
19 Cable Assembly
20 Cable Assembly Cover
21 Valve Stem VS-2

WP-9,WP-9F,WP-9V,WP-9FV Torch Terminations(Cable and Gas Whole)

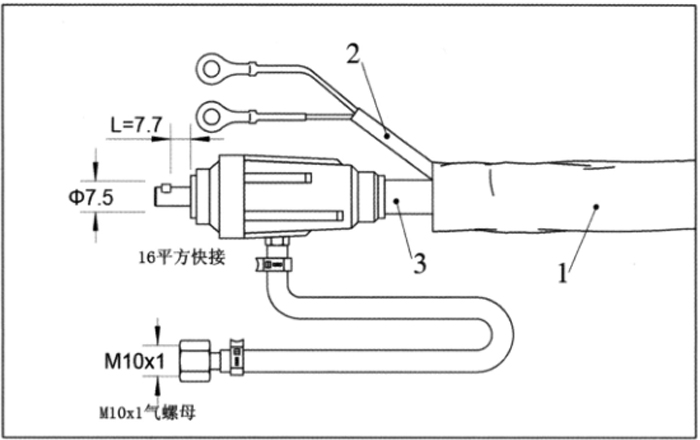

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)
4 Nut Cup(SW19)

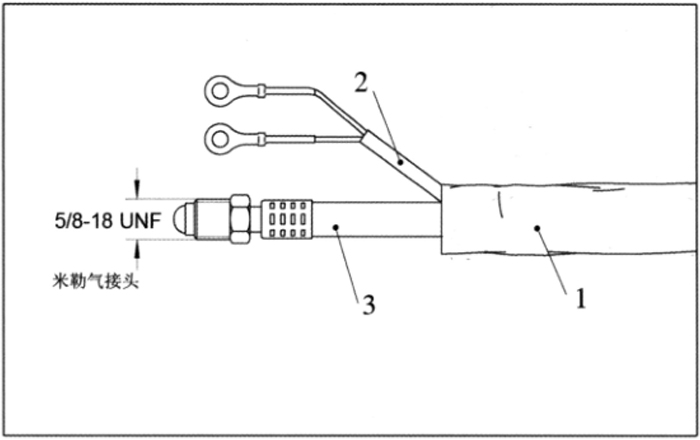

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)

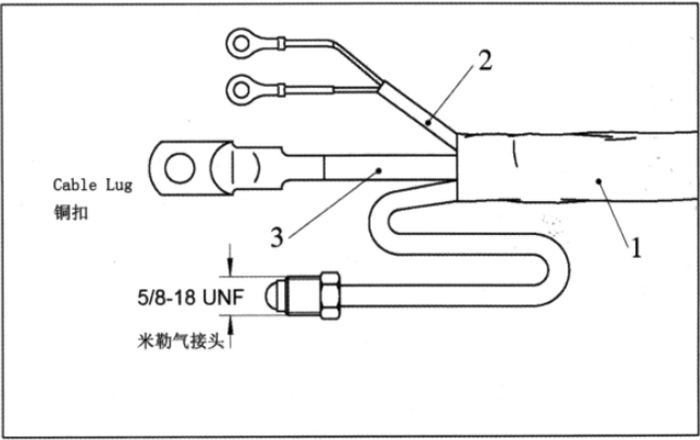

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)

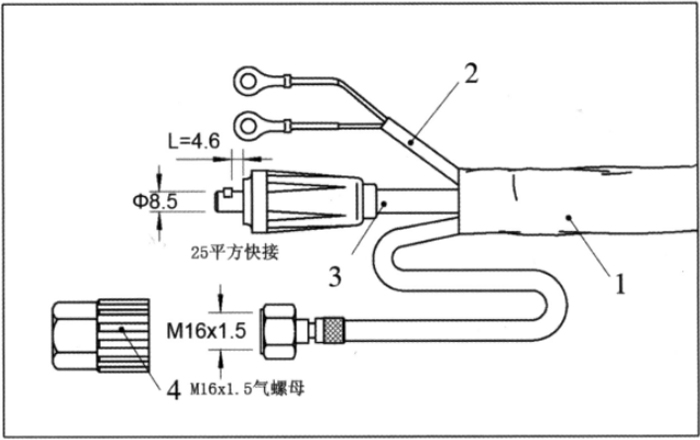

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
4 Nut Cup(SW19)

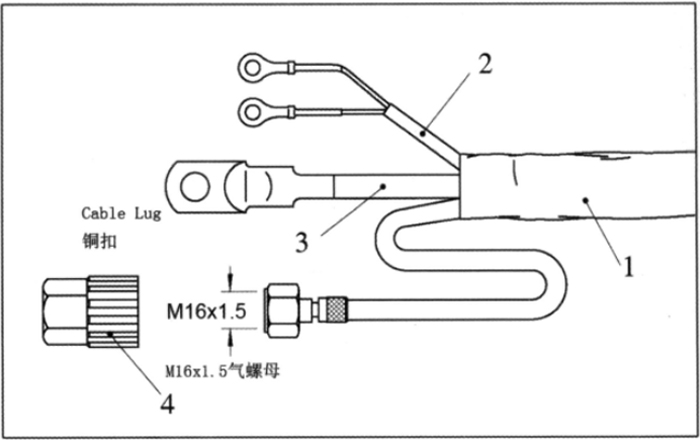

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
4 Nut Cup(SW19)

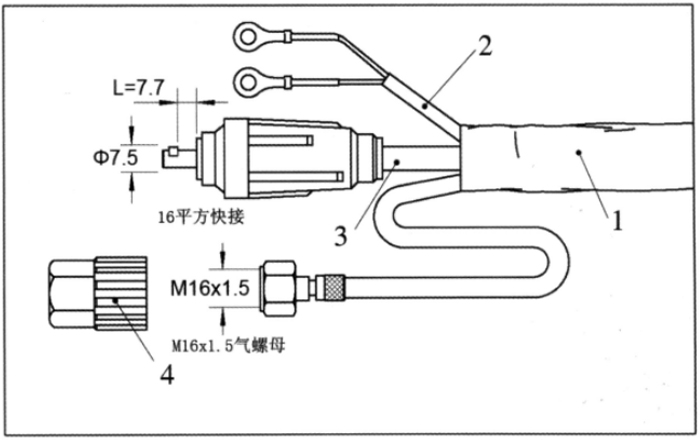

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
4 Nut Cup(SW19)

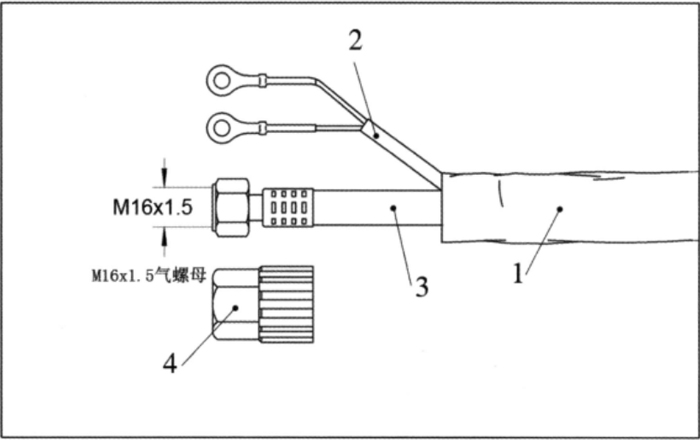

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
4 Nut Cup(SW19)
