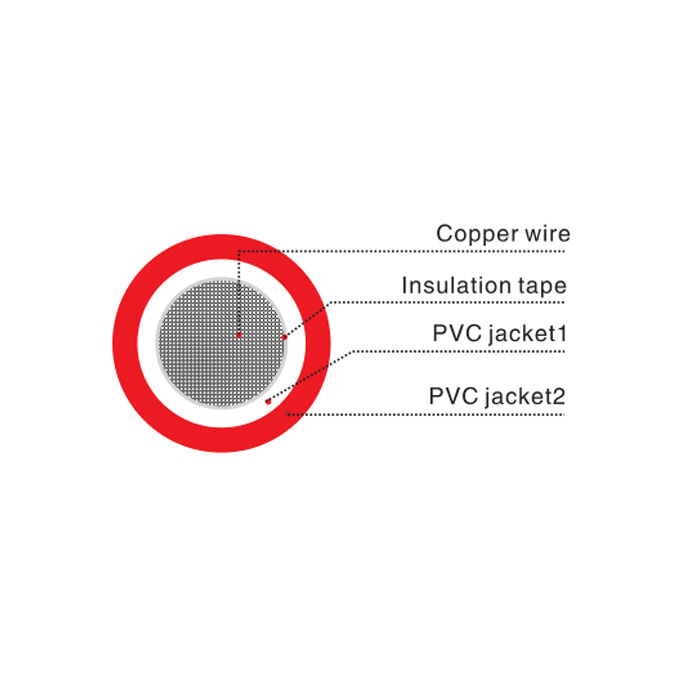

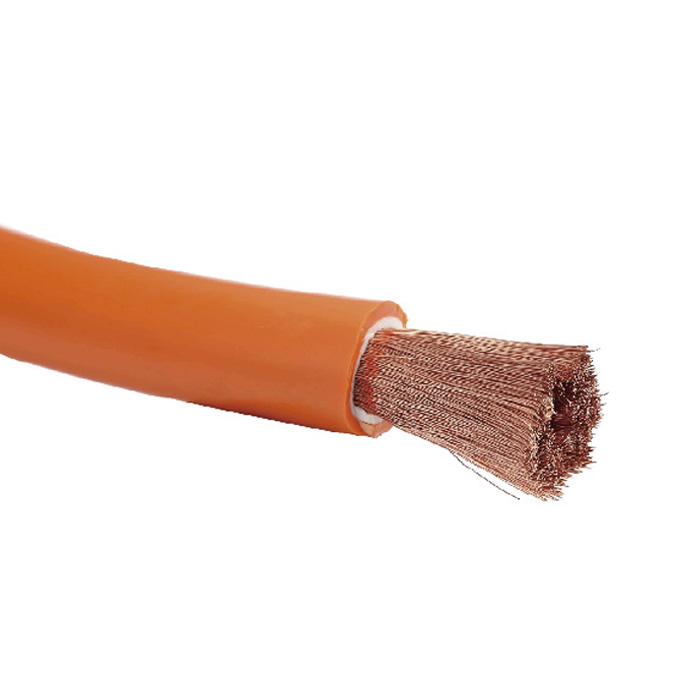

PVC WELDING CABLE

Working temperature: -15℃-70℃
Available Rubber Jacket Colour：Black，Blue, Red,Orange，White

Nominal sections(mm²)	coppers(mm)	Thickness of sheath(mm)	Average of o.d(mm)		Max.conductor resistance @ 20℃(Ω/km)	Nominal weight (kg/km)
Nominal sections(mm²)	No./dia.	Thickness of sheath(mm)	Min.	Max.	Max.conductor resistance @ 20℃(Ω/km)	Nominal weight (kg/km)
16	513x0.20	2.0	9.0	11.5	1.21	240
25	798x0.20	2.0	10.5	13	0.78	350
35	1121 x0.20	2.0	11.5	14.5	0.554	450
50	1596x0.20	2.2	13.5	17	0.386	625
70	2220 x 0.20	2.4	15.5	19.5	0.272	825
95	3034 x 0.20	2.6	17	22	0.206	1125
120	1702x0.20	2.8	19	24	0.161	1380
