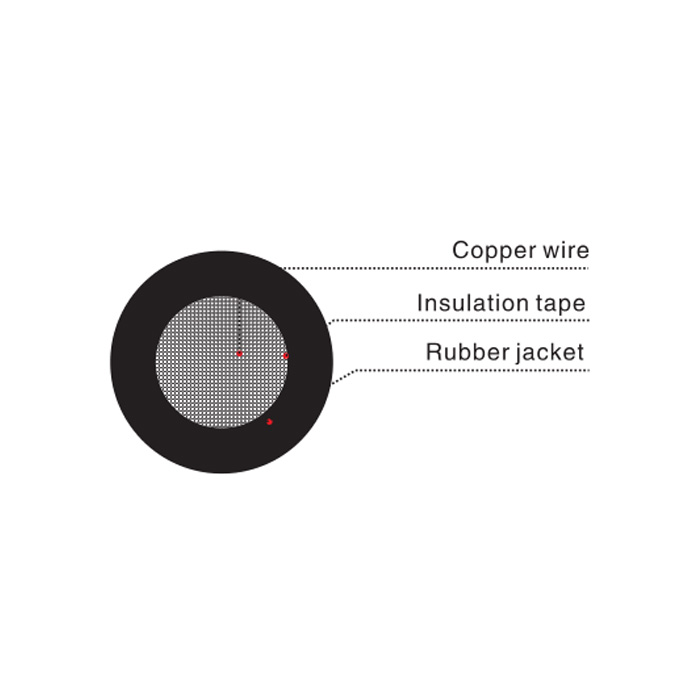

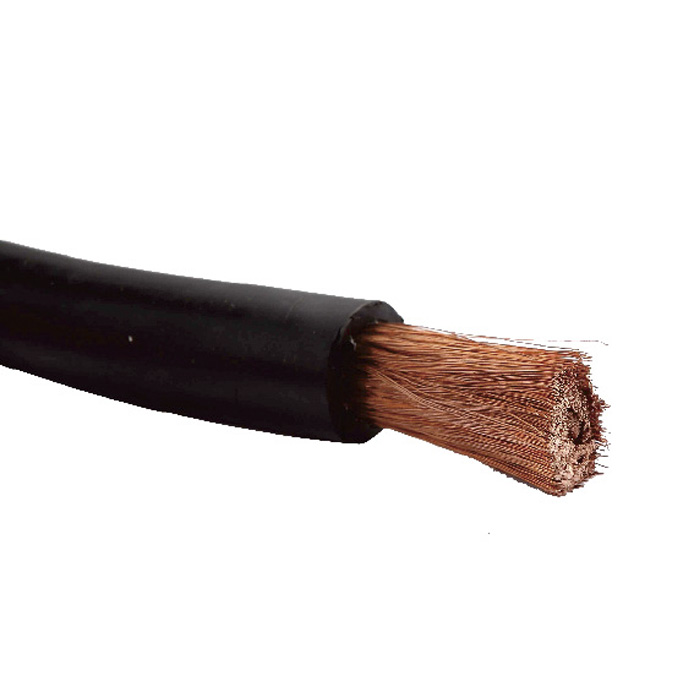

RUBBER WELDING CABLE

Standard: EN50525-2-81
Working temperature: -30℃-70℃
Available Rubber Jacket Colour：Black，Blue, Red,Orange

Nominal sections(mm²)	Dia.of strands max(mm)	Thickness of sheath(mm)	Average of O.D.(mm)		Max.conductor resistance @20℃(Ω/km)
Nominal sections(mm²)	Dia.of strands max(mm)	Thickness of sheath(mm)	Min	Max	TC	BC
10	0.21	2.0	7.7	9.7	1.95	1.91
16	0.21	2.0	8.8	11	1.24	1.21
25	0.21	2.0	10.1	12.7	0.795	0.78
35	0.21	2.0	11.4	14.2	0.565	0.554
50	0.21	2.2	13.2	16.5	0.393	0.386
70	0.21	2.4	15.3	19.2	0.277	0.272
95	0.21	2.6	17.1	21.4	0.21	0.206
120	0.21	2.8	19.2	24	0.164	0.161
150	0.21	3.0	21.1	26.4	0.132	0.129
185	0.21	3.2	23.1	28.9	0.108	0.106
