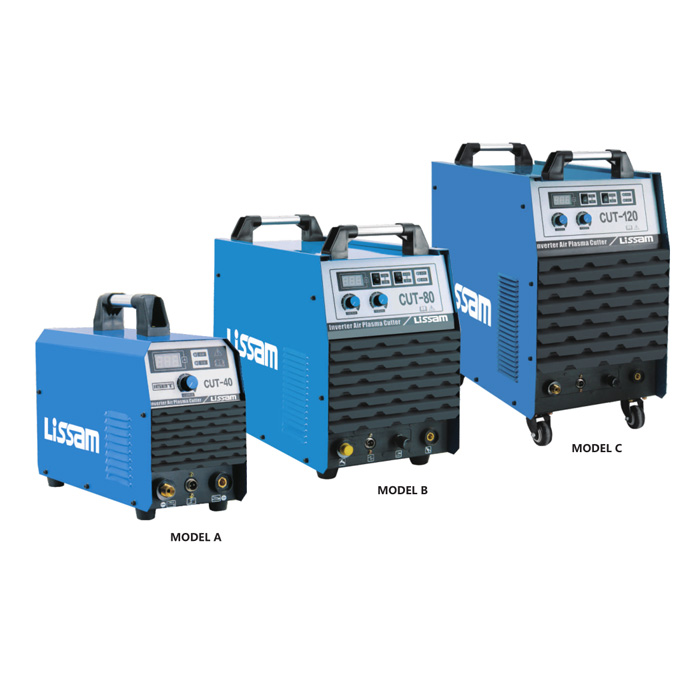

CUT

CUT

DESCRIPTION:

● Inverter technology IGBT, Compact design and energy saving.

● Use air plasma arc cutting process, high cutting speed.

● DC output, cutting current can be precisely controlled.

● Excellent HF (high frequency) arc starting, smooth cutting surface, strong compensation capability.

● Auto protection of over-heat and over current.



0
Views: 73

Details

Model

CUT-40

CUT-60

CUT-80

CUT-100

CUT-120

CUT-160

Rated Input Voltage (V)

230

400

400

400

400

400

No-load Voltage (V)

240

255

270

310

310

310

Current Range (A)

15-40

15-60

20-80

20-100

20-120

20-160

Fuse (A)

16

20

25

28

30

32

Arcing Mode

Contact

Contact

HF

HF

HF

HF

Cutting Thickness(mm)

12mm

23mm

28mm

30mm

35mm

45mm

Duty Cycle (%)

60%

60%

60%

60%

60%

60%

Weight (Kg)

13

18

27

29

33

46
