LBI 25

LBI 25

Technical Data



Rating: 230A CO2
             200A Mixed Gases
Duty Cycle : 60%
Wire size:  0.8-1.2mm

0
Views: 2,170

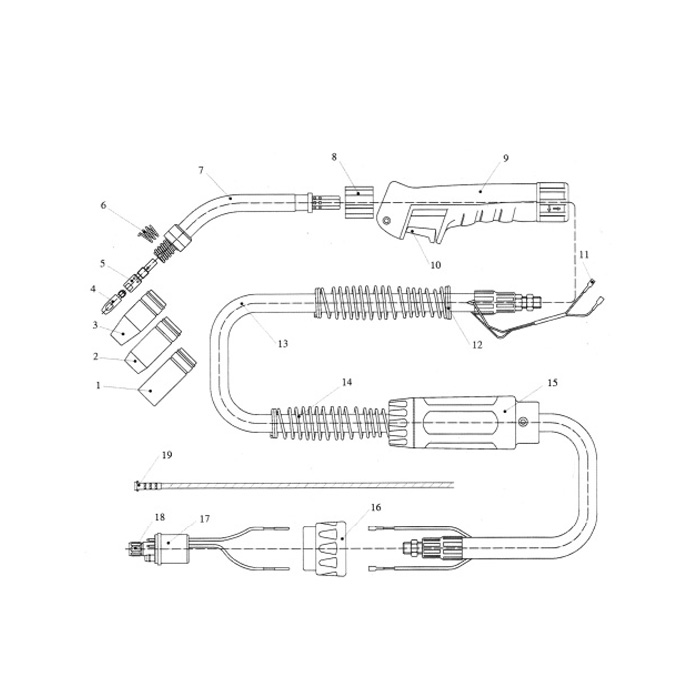

Details

No.

Description

Part No.



LBI25 Complete Torch-3M

LS 004.0312



LBI 25 Complete Torch-4M

LS 004.0313



LBI 25 Complete Torch-5M

LS 004.0314

1

Cylindrical Nozzle Φ 18mm

LS 145.0042

2

Conical Nozzle Φ 15mm

LS 145.0076

3

Tapered Nozzle Φ11.5mm

LS 145.0124

4

M6 X 28 X 0.8 Contact Tip,E-Cu

LS 140.0051



M6 X 28 X 0.9 Contact Tip,E-Cu

LS 140.0169



M6 X 28 X 1.0 Contact Tip,E-Cu

LS 140.0242



M6 X 28 X 1.2 Contact Tip,E-Cu

LS 140.0379



M6 X 28 X 0.8 Contact Tip,E-Cu for Al.

LS 141.0001



M6 X 28 X 1.0 Contact Tip,E-Cu for Al.

LS 141.0006



M6 X 28 X 1.2 Contact Tip,E-Cu for Al.

LS 141.0010



M6 X 28 X 0.8 Contact Tip, CuCrZr

LS 141.0054



M6 X 28 X 1.0 Contact Tip, CuCrZr

LS 140.0245



M6 X 28 X 1.2 Contact Tip, CuCrZr

LS 140.0382

5

Contact Tip Holder

LS 142.0001

6

Nozzle Spring

LS 003.0013

7

Swan Neck

LS 004.0012
8

Plastic Nut

LS 400.0044C

9

Handle

LS 180.0076

10

Switch

LS185.0031

11

Switch Connector Collet

LS 175.A022

12

Cable Support

LS 400.1010

13

Cable Assembly (25mm²),3M





Cable Assembly (25mm²),4M





Cable Assembly (25mm²),5M



14

Cable Support

LS 400.1010

15

Rear Handle

LS 501.2248

16

Adaptor Nut

LS 500.0213

17

Central Connector KZ-2

LS 501.0003

18

Nut M10×1

LS 501.0082

19

Insulated Liner, For wire Φ0.6-0.8,3.5M

LS 124.0011



4.5M

LS 124.0012



5.5M

LS 124.0015



Insulated Liner, For wire Φ 1.0-1.2,3.5M

LS 124.0026



4.5M

LS 124.0031



5.5M

LS 124.0035



Teflon Liner, For wire Φ0.6-0.8,3.5M

LS 126.0005



4.5M

LS 126.0008



5.5M

LS 126.0011



Teflon Liner, For wire Φ 1.0-1.2,3.5M

LS 126.0021



4.5M

LS 126.0026



5.5M

LS 126.0028
