LBI 36

LBI 36

Technical Data



Rating : 340A CO2
              320A Mixed Gases
Duty Cycle : 60%
Wire size:  0.8-1.2mm

0
Views: 32

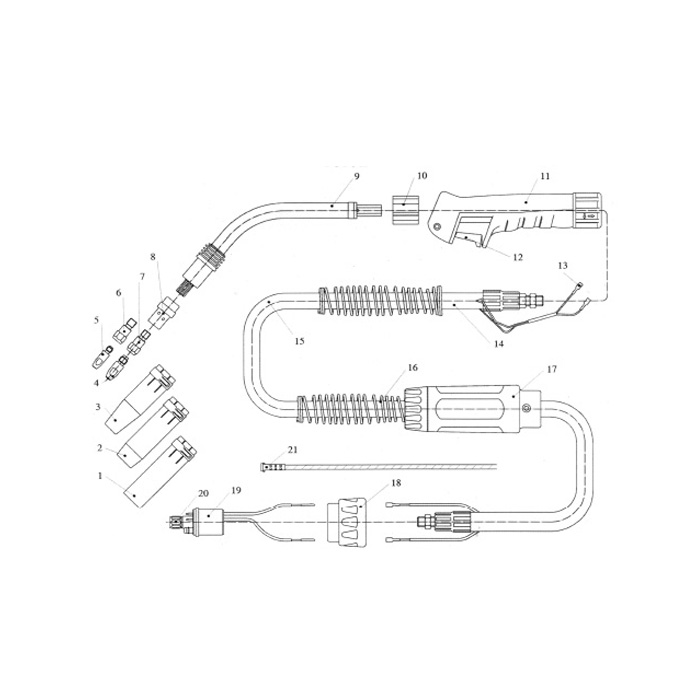

Details

No.

Description

Part No.



LBI 36 Complete Torch-3M

LS 014.0143



LBI 36 Complete Torch-4M

LS 014.0144



LBI 36 Complete Torch-5M

LS 014.0145

1

Cylindrical Nozzle Φ 19mm

LS 145.0045

2

Conical Nozzle Φ 16mm

LS 145.0078

3

Tapered Nozzle Φ12mm

LS 145.0126

4

M6 X 28 X 0.8 Contact Tip,E-Cu

LS 140.0051



M6 X 28 X 0.9 Contact Tip,E-Cu

LS 140.0169



M6 X 28 X 1.0 Contact Tip,E-Cu

LS 140.0242



M6 X 28 X 1.2 Contact Tip,E-Cu

LS 140.0379



M6 X 28 X 0.8 Contact Tip,E-Cu for Al.

LS 141.0001

4

M6 X 28 X 1.0 Contact Tip,E-Cu for Al.

LS 141.0006



M6 X 28 X 1.2 Contact Tip,E-Cu for Al.

LS 141.0010



M6 X 28 X 0.8 Contact Tip, CuCrZr

LS 141.0054



M6 X 28 X 1.0 Contact Tip, CuCrZr

LS 140.0245



M6 X 28 X 1.2 Contact Tip, CuCrZr

LS 140.0382

5

M8 X 30 X 0.8 Contact Tip,E-Cu

LS 140.0114



M8 X 30 X 1.0 Contact Tip,E-Cu

LS 140.0313


M8 X 30 X 1.2 Contact Tip,E-Cu

LS 140.0442


M8 X 30 X0.8 Contact Tip,E-Cu for Al.

LS 141.0003


M8 X 30 X 1.0 Contact Tip,E-Cu for Al.

LS 141.0008


M8 X 30 X 1.2 Contact Tip,E-Cu for Al.

LS 141.0015


M8 X 30 X 0.8 Contact Tip, CuCrZr

LS 141.0117


M8 X 30 X 1.0 Contact Tip, CuCrZr

LS 140.0316


M8 X 30 X 1.2 Contact Tip, CuCrZr

LS 140.0445
6

Contact Tip Holder M6 X22




 M6 X25

LS 142.0005


 M6 X32

LS 142.0011
7

Contact Tip Holder M8 X25




M8 X28

LS 142.0020


M8 X34

LS 142.0024
8

Gas Diffuser Standard

LS 014.0261


Long life

LS 014.0026


Ceramic

LS 014.0023
9

Swan Neck

LS 998.0091
10

Plastic Nut

LS 400.0044

11

Handle

LS 180.0076

12

Switch

LS185.0031

13

Switch Connector Collet

LS 175.A022

14

Cable Support

LS 400.1010

15

Cable Assembly (37mm²),3M





Cable Assembly (37mm²),4M





Cable Assembly (37mm²),5M



16

Cable Support

LS 400.1010

17

Rear Handle

LS 501.2248

18

Adaptor Nut

LS 500.0213

19

Central Connector KZ-2

LS 501.0003

20

Nut M10×1

LS 501.0082

21

Insulated Liner, For wire Φ0.8,3.5M

LS 124.0011



4.5M

LS 124.0012



5.5M

LS 124.0015



Insulated Liner, For wire Φ 1.0-1.2,3.5M

LS 124.0026



4.5M

LS 124.0031



5.5M

LS 124.0035



Teflon Liner, For wire Φ0.8,3.5M

LS 126.0005



4.5M

LS 126.0008



5.5M

LS 126.0011



Teflon Liner, For wire Φ 1.0-1.2,3.5M

LS 126.0021



4.5M

LS 126.0026



5.5M

LS 126.0028
