LBN400

LBN400

Technical Data

Rating:  400A CO2
              320A Mixed Gases
Duty Cycle:  60%
Wires :0.030"-0.045"(0.8-1.6mm).

0
Views: 27

Details

Model
Description Part Number
Welding Gun c/w Euro Fitting 10ft/3m 12ft/3.6m 15ft/4.5m
  LBN400-10 LBN400-12 LBN400-15
Nozzles
No. Part Number Description
A 4491 Brass Nozzle 3/4"
  4492 Brass Nozzle 9/16"
  4491 Copper Nozzle 3/4"
Contact Tips
B 7488 Contact Tip 0.030"/0.8mm Ecu
  7489 Contact Tip 0.035"/0.9mm Ecu
  7496 Contact Tip 0.040"/1.0mm Ecu
  7490 Contact Tip 0.045"/1.2mm Ecu
  7498 Contact Tip 0.052"/1.4mm Ecu
  7491 Contact Tip 1/167"/.6mm Ecu
Liners
C 44210 Steel Liner.045"-1/1671.2-1.6mm x 10ft/3m
  44215 Steel Uner .045"—1/16"/1.2-1.6mm x 15W4.5m
  44210T Teflon Liner.045"-1/16"/1.2-1.6mm x I0ft/3m
  44215T Teflon Lmer.045"—1 /16V1.2-1,6mm x 15ft/4.5m

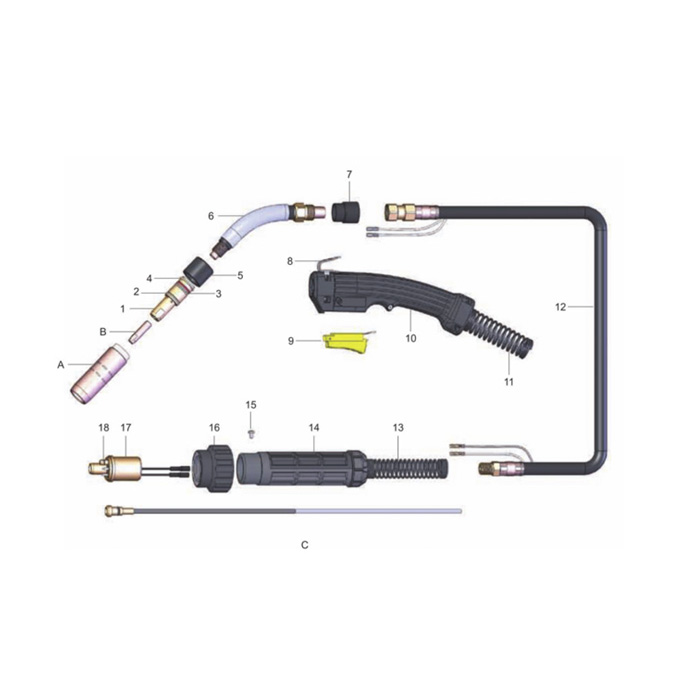

Compontents
No. Part Number Description
1 4335 Gas Diffuser
2 Q1416715 Circlip For 4335
3 Q515617S O-Ring 15.6x1.78
4 Q1217516 Shap Ring For 4435
5 4423 Rubber Cap
6 4790 Gun Neck
7 4780 Insulating Nut
8 EG0002 Hanger Hook
9 BEJ2005 Trigger Switch
10 BEH2101 Handle
11 KS3101 Front Spring Cable Support
  BEL4010 Cable Assembly 10ft/3m
  BEL4012 Cable Assembly 12ft/3.6m
12 BEL4015 Cable Assembly 15ft/4.5m
13 ES3201 Back Spring Cable Support
14 EH2201 Back Handle
15 EH2211 Screw M4x6
16 EP3001 Gun Plug Nut
17 BEU2001 Bernard Euro Gun Plug
18 Q504010 O-Ring 4x1
19 Q505217 O-Ring 5.28x1.78

Denoter Standard build
