LOX 235

LOX 235

Technical Data



Rating:  300A CO2
              260A Mixed Gases
Duty Cycle:  60%
Wire size:  0.8-1.2mm

0
Views: 30

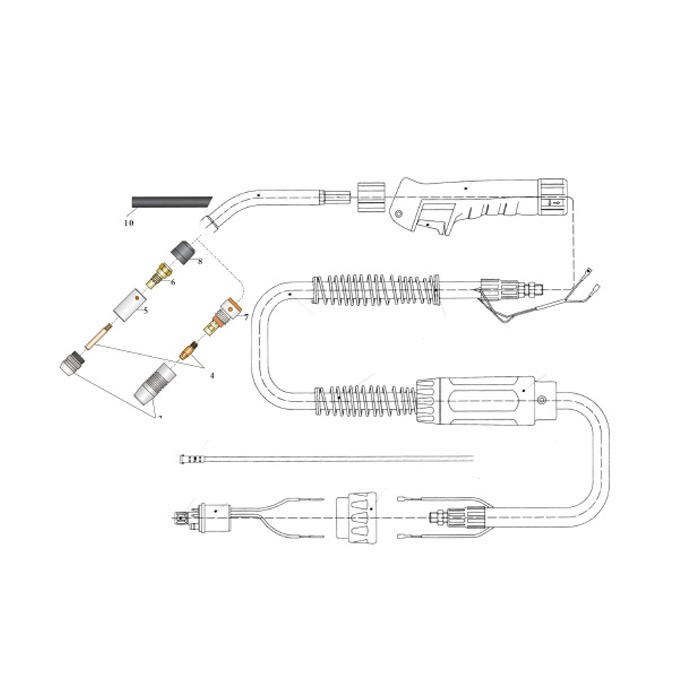

Details

No.

Description

Part No.



LOX 450 Complete Torch-3M

LOX233



LOX 450 Complete Torch-4M

LOX234



LOX 450 Complete Torch-5M

LOX235

1

Gas Nozzle Φ 15mm(38mm)

ME 534



Gas Nozzle Φ 19mm(38mm)

ME 515

2

Gas Nozzle Φ 15mm(35mm)

ME 514



Gas Nozzle Φ 19mm(35mm)

ME 521

3

Gas Nozzle Φ 13mm(65mm)

ME 517


Gas Nozzle Φ 16mm(65mm)

ME 516


Gas Nozzle Φ 19mm(65mm)

ME 512
4

Contact Tip,W5/16"x 55 x 0.8

MA 050


Contact Tip,W5/16"x 55 x 0.9

MA 051


Contact Tip,W5/16"x 55 x 1.0

MA 052


Contact Tip,W5/16"x 55 x 1.2

MA 053


Contact Tip,W5/16"x 55 x 1.6

MA 054
5

Contact Tip,W5/16"x 55 x 0.8

MA 040


Contact Tip,W5/16"x 55 x 0.9

MA 041


Contact Tip,W5/16"x 55 x 1.0

MA 042


Contact Tip,W5/16"x 55 x 1.2

MA 043


Contact Tip,W5/16"x 55 x 1.6

MA 044

6

Contact Tip,M8 x 30 x 0.8

MA 060



Contact Tip,M8 x 30 x 0.9

MA 061



Contact Tip,M8 x30 x 1.0

MA 062



Contact Tip,M8 x 30 x 1.2

MA 063



Contact Tip,M8 x 30 x 1.6

MA 064

7

Gas Nozzle Supporter

MD 491

8

Gas Nozzle Supporter

MD 490

9

Gas Nozzle Holder,W5/16"

MB 405

10

Gas Nozzle Holder,M8

MB 406

11

Insulator

MC 443

12

Swan Neck

LS574
13

Swan Neck Cover

LS446
14

Plastic Nut

LS622

15

Handle

LS180.0076

16

Switch

LS 185.0031

17

Switch Connector Collet

LS 175.A022

18

Cable Support

LS500.0225

19

Cable Assembly (50mm²),3M

——



Cable Assembly (50mm²),4M

MM730



Cable Assembly (50mm²),5M

MM731

20

Cable Support

LS 500.0225

21

Rear Handle

LS 501.2248

22

Adaptor Nut

MN 761

23

Central Connector KZ-2

MO 770

24

Nut M10×1

MN 762

25

Insulated liner,0.8-1.0mm,3m

MP 800



Insulated liner,0.8-1.0mm,4m

MP 801



Insulated liner,0.8-1.0mm,5m

MP 802



Insulated liner,1.2mm,3m

MP 803



Insulated liner.1.2mm,4m

MP 804



Insulated liner.1.2mm,5m

MP 805



Insulated liner.1.6mm,3m

MP 806



Insulated liner.1.6mm,4m

MP 807


Insulated liner.1.6mm,5m

MP 808


Teflon liner,1.2mm,3m

MP 814


Teflon liner,1.2mm,4m

MP 900


Teflon liner,1.2mm,5m

MP 901
