LTW-4

LTW-4

Technical Data

Rating:  400A CO2
              350A Mixed Gases
Duty Cycle:  60%
wires:0.030"-5/64(0.8-2.0mm)

0
Views: 24

Details

Model
Description Part Number
  3m 4m 5m
Welding Gun c/w Euro Fitting LTW4-3E LTW4-4E LTW4-5E
Welding Gun c/w Tweco Fitting LTW4-3T LTW4-4T LTW4-5T
Welding Gun c/w Lincoln Fitting LTW4-3L LTW4-4L LTW4-5L
Welding Gun c/w Miller Fitting LTW4-3M LTW4-4M LTW4-5M
Nozzles
No. Part Number Description
A 24A50 Nozzle Adjustable
  24A62 Nozzle Adjustable
  24A75 Nozzle Adjustable
  24AH50 Nozzle Heavy Duty
  24AH62 Nozzle Heavy Duty
  24AH75 Nozzle Heavv Dutv
B 23-50 Nozzle Self Insulated
  23-62 Nozzle Self Insulated
  23-75 Nozzle Self Insulated
C 24CT50S Nozzle Fixed Coarse Thread
  24CT62S Nozzle Fixed Coarse Thread
  24CT75S Nozzle Fixed Coarse Thread
Contact Tips
D 14-35 Contact Tip 0.025"/0.9mm Ecu
  14-45 Contact Tip 0.045"/1.2mm Ecu
  14-52 Contact Tip 0.052"/1.3mm Ecu
  14-116 Contact Tip 1/16"/1.6mm Ecu
  14H-35 Contact Tip 0.035"/0.9mm Ecu HD
  14H-45 Contact Tip 0.045"/1.2mm Ecu HD
  14H-52 Contact Tip 0.052"/1.3mm Ecu HD
  14H-116 Contact Tip 1/16"/1.6mm Ecu HD
  14H-564 Contact Tip 5/64"/2.0mm Ecu HD
Liners
E 44-3545-15 Steel Liner 0.035"-0.045"/0.9-1.2mm x 15ft
  44-116-15 Steel Liner 1/16"/16mm x 15ft
  44-564-15 Steel Liner 5/64"/2.0mm x 15ft
  44T-3545-15 Teflon Liner 0.035"-0.045"/0.9-1.2mm x 15ft
  44T-116-15 Teflon Liner 1/16"/1.6mm x 15ft
Compontents

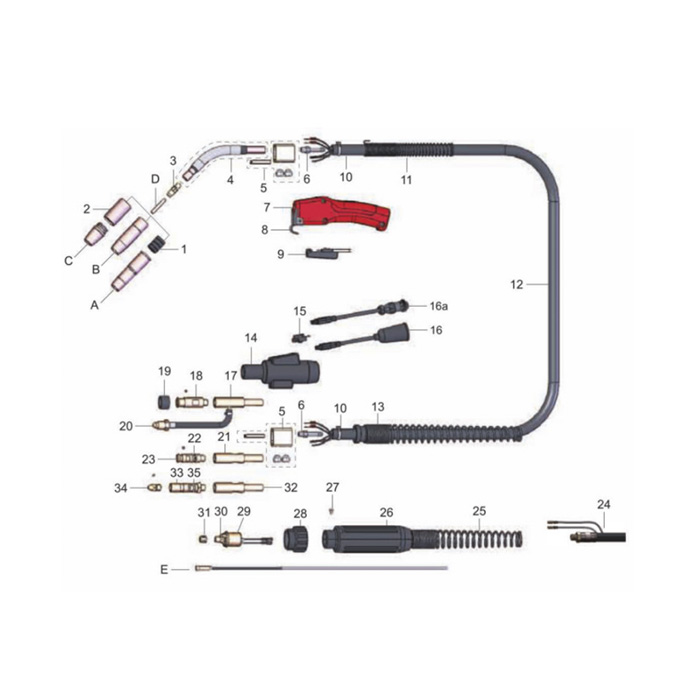

No. Part Number Description
1 34A Adjustable Nozzle Insulator
2 34CT Nozzle Insulator Coarse Thread
3 54A Gas Diffuser
4 64A-45J Jacketed Conductor Tube 45°
  64A-60J Jacketed Conductor Tube 60°
5 104 Cable Connector Block Assembly
6 64N Gas Nipple
7 84HD-R Handle w/Screws,Red
8 154HD Hanger Hook
9 92 Trigger Switch
10 134-14 Cable Hose Clamp
11 144-6S Front Spring Cable Support
12 HDL4030B Cable Assembly 10m
  HDL4040B Cable Assembly 12m
  HDL4050B Cable Assembly 15m
13 R185-S Back Spring Cable Support
14 R185-H Gun Plug Housing w/Screws
15 194 Connector Tab Assembly
16 LAK-354 2 Pin Plug Assembly
16a MSAK-354 Miller 2 Pin Plug Assembly
17 R174-UAG Connector Pulg w/Gas Hole
18 R174-L Connector.Lincoln
19 HDN0201 Connector Insulator
20 HDW0201 Gas Hose Assembly
21 R172-UA Connector Pulg
22 Q511818 O-Ring 11.8 x 1.8
23 R174-T Connector,Tweco
24 HDL4030BE Cable Assembly 10m, Use w/Euro Fitting
  HDL4040BE Cable Assembly 12m, Use w/Euro Fitting
  HDL4050BE Cable Assembly 15m, Use w/Euro Fitting
25 EA0374 Spring
26 MT0077 Rear End Assembly Complete
27 EH2211 Screw M4 x 6
28 EP3001 Gun Plug Nut
29 TEU1001 Tweco Euro Gun Plug
30 Q504010 O-Ring 4x1
31 TEU1011 NutM11 x1
32 R172-UA Connector Pulg
33 R174-M Connector
34 174M-N Contact Tip
35 Q512526 O-Ring 12.5x2.65
