17 Series

17 Series

Technical Data



Rating: 150A DC
             120A AC
Duty Cycle: 60%
Tungsten Rod: 0.5-2.4mm

0
Views: 57

Details

No. Description Part No.
  WP-17 Torch(Gas and Cable Whole) WP-17-1(4M)
  WP-17 Torch(Gas and Cable Whole) WP-17-1(8M)
  WP-17 Torch(Gas and Cable Separate) WP-17-2(4M)
  WP-17 Torch(Gas and Cable Separate) WP-17-2(8M)
1 Torch Body WP-17
1a Torch Body(Flexible) WP-17F
1b Torch Body(Valve) WP-17V
1c Torch Body(Flexible and Valve) WP-17FV
2 Long Back Cap 57Y02
3 Short Back Cap 57Y04
4 Gasket 18CG
5 Stubby Gasket 18CG-20
6 Gas Lens Insulator 54N01
7 Large Dia. Gas Lens Insulator 54N63
8 Collet 10N21.0.5mm
    10N22.1.0mm
    10N23.1.6mm
    10N23M.2.0mm
    10N24.2.4mm
9 Stubby Collet 10N21S.0.5mm
    10N22S. 1.0mm
    10N23S,1.6mm
    10NS,2.0mm
    10N24S.2.4mm
10 Collet Body 10N29.0.5mm
    10N30.1.0mm
    10N31,1.6mm
    10N32.2.4mm
11 Stubby Collet Body 17CB20,All size
12 Medium Gas Lens 45V29.0.5mm
    45V24.1.0mm
    45V25,1.6mm
    45V26.2.4mm
13 Large Long Gas Lens 45V116,1.6mm
    45V64.2.4mm
14 Ceramic Nozzle 10N50.6mm
    10N49,8mm
    10N48.10mm
    10N47.11mm
    10N46.13mm
    10N45.16mm
    10N44.19mm
15 Extra Length Ceramic Nozzle 10N49L,8mm
    10N48L.10mm
    10N47L,11mm
16 Stubby Ceramic Nozzle 13N08.6mm
    13N09.8mm
    13N10,10mm
    13N11,11mm
    13N12.13mm
    13N13.16mm
17 Ceramic Nozzle 54N18.6mm
    54N17,8mm
    54N16.10mm
    54N15.11mm
    54N14.13mm
    54N19.19mm
18 Extra Long Ceramic Nozzle 54N17L,8mm
    54N16L.10mm
    54N15L.11mm
19 Extra Dia. Ceramic Nozzle 57N75,10mm
    57N74.13mm
    53N88.16mm
    53N87.19mm
20 Switch(with wire)
21 Handle 105Z55
22 Cable Assembly
23 Cable Assembly Cover
24 Valve Stem VS-2

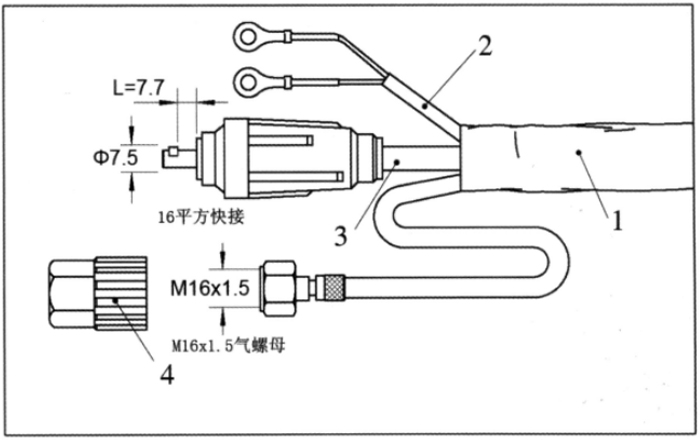

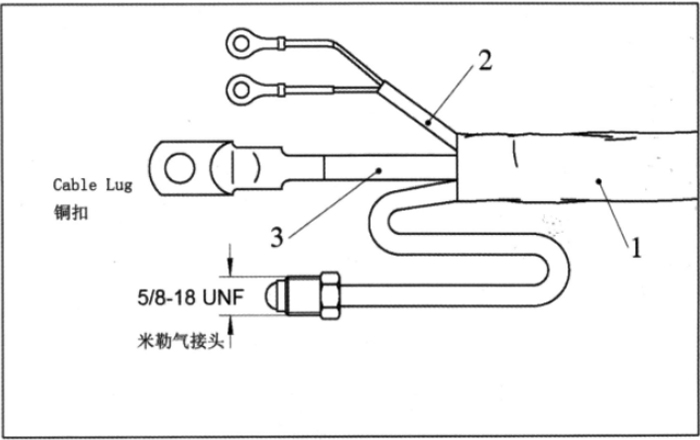

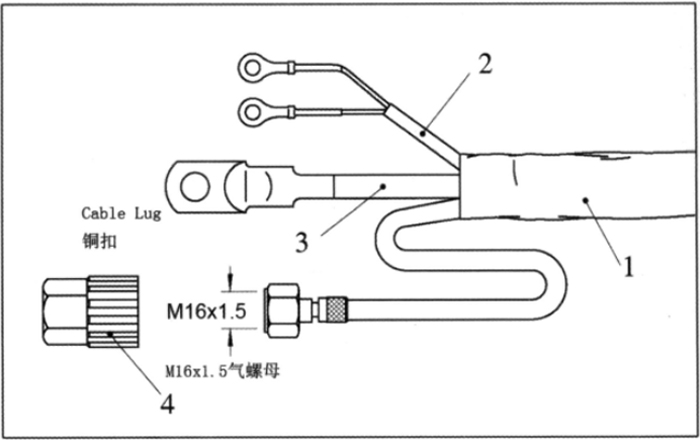

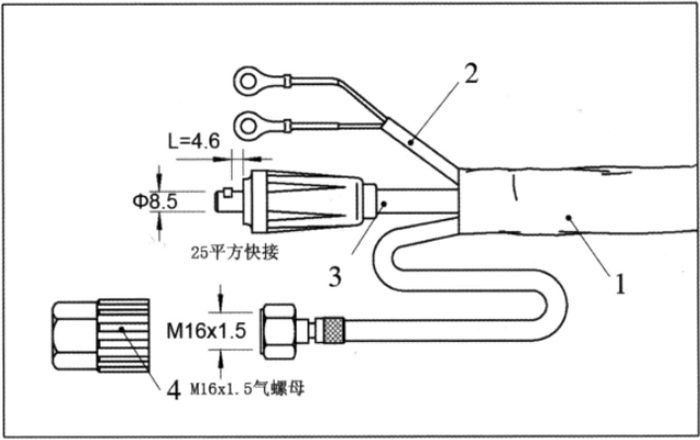

WP-17,WP-17F,WP-17V,WP-17FV Torch Terminations (Cable  Gas Whole)

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)
4 Nut Cup(SW19)



NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)



NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)

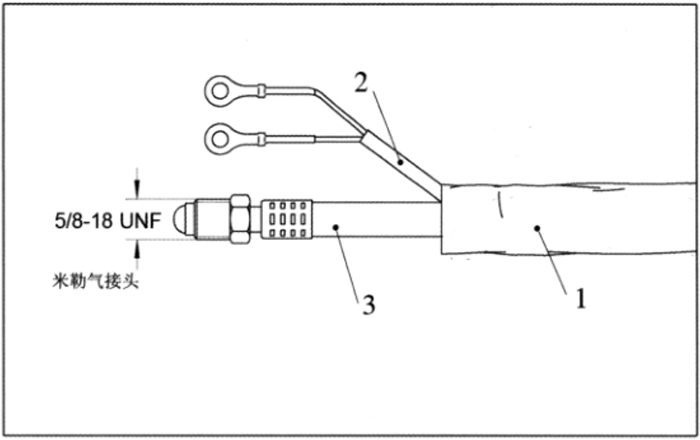

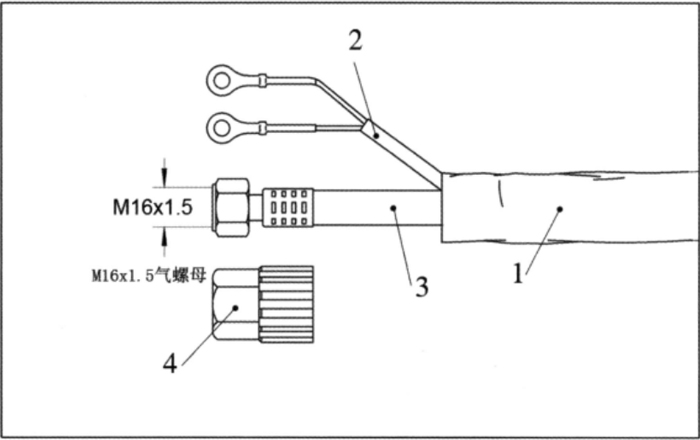

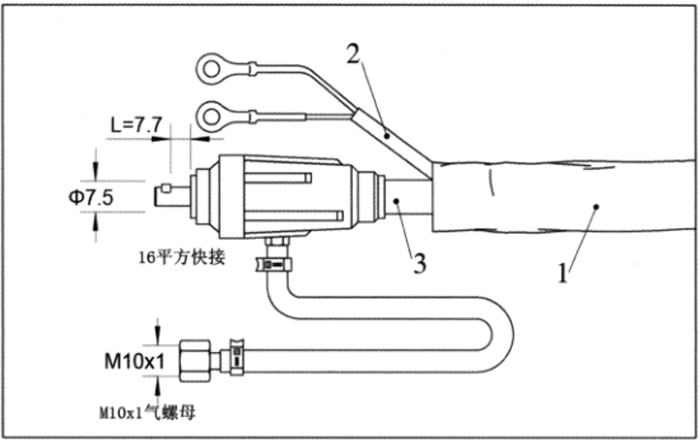

WP-17,WP-17F,WP-17V,WP-17FV Torch Terminations(Cable  Gas Whole)

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 10mm²,4M(12.5 feet)
  Cable 10mm²,8M(25 feet)
4 Nut Cup(SW19)



NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
4 Nut Cup(SW19)



NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
4 Nut Cup(SW19)



NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 16mm²,4M(12.5 feet)
  Cable 16mm²,8M(25 feet)
