18 Series

18 Series

Technical Data

Rating:  350A DC
              250A AC
Duty Cycle:  100%
Tungsten Rod: 0.5-4.0mm

0
Views: 81

Details

No. Description Part No.
  WP-18 Torch WP-18(4M)
  WP-18 Torch WP-18(8M)
1 Torch Body WP-18
1a Torch Body(Flexible) WP-18F
1b Torch Body(Valve) WP-18V
1c Torch Body(Pencil) WP-18P
2 Long Back Cap 57Y02
3 Short Back Cap 57Y04
4 Gasket 18CG
5 Stubby Gasket 18CG-20
6 Gas Lens Insulator 54N01
7 Large Dia. Gas Lens Insulator 54N63
8 Collet 10N21.0.5mm
    10N22.1.0mm
    10N23.1.6mm
    10N23M.2.0mm
    10N24,2.4mm
    10N24.3.2mm
9 Stubby Collet 10N21S,0.5mm
    10N22S.1.0mm
    10N23S.1.6mm
    10N23MS.2.0mm
    10N24S.2.4mm
    10N25S.3.2mm
10 Collet Body 10N29.0.5mm
    10N30,1.0mm
    10N31,1.6mm
    10N32.2.4mm
    10N28.3.2mm
11 Stubby Collet Body 17CB20.Allslzo
12 Medium Gas Lens 45V29.0.5mm
    45V24,1.0mm
    45V25.1.6mm
    45V26.2.4mm
    45V27,3.2mm
13 Large Long Gas Lens 45V116.1.6mm
    45V64.2.4mm
    995795,3.2mm
    45V63.4.0mm
14 Ceramic Nozzle 10N50.6mm
    10N49.8mm
    10N48,10mm
    10N47.11mm
    10N46.13mm
    10N45.16mm
    10N44.19mm
15 Extra Length Ceramic Nozzle 10N49L.8mm
    10N48L.10mm
    10N49L.11mm
16 Stubby Ceramic Nozzle 13N08,6mm
    13N09,8mm
    13N10,10mm
    13N11,11mm
    13N12.13mm
    13N13,16mm
17 Ceramic Nozzle 54N18.6mm
    54N17,10mm
    54N16,10mm
    54N15.11mm
    54N14,13mm
    54N19,17mm
18 Extra Long Ceramic Nozzle 54N17L.8mm
    54N16L.10mm
    54N15L.11mm
19 Extra Dia. Ceramic Nozzle 57N75.10mm
    57N74,13mm
    53N88.16mm
20 Switch(with wire) 53N87,19mm
21 Handle
22 Cable Assembly 105Z55
23 Cable Assembly Cover
24 Valve Stem
    VS-2

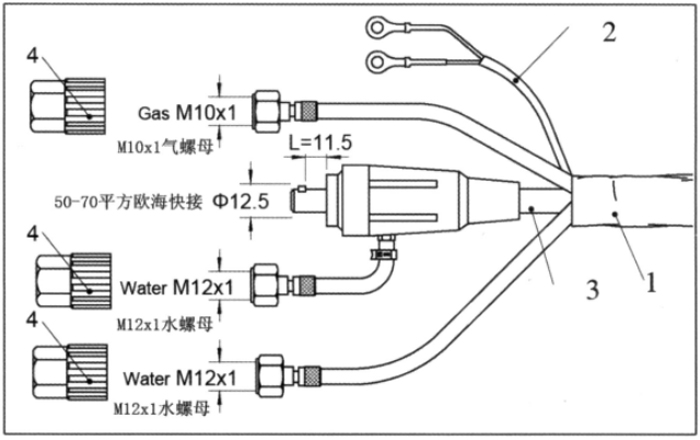

WP-18,WP-18F,WP-18V,WP-P Torch Terminations

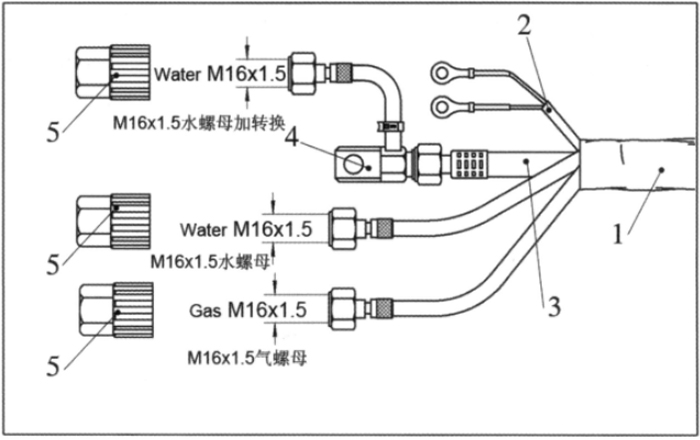

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 8mm²,4M(12.5 feet)
  Cable 8mm²,8M(25 feet)
4 Cable Adapter
5 Nut Cup(SW19)

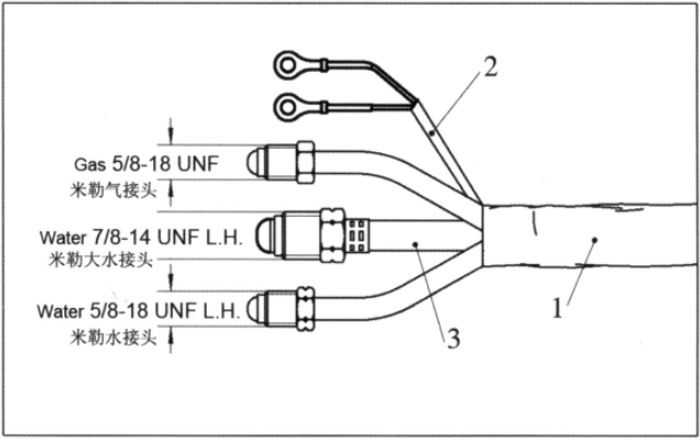

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 8mm²,4M(12.5 feet)
  Cable 8mm²,8M(25 feet)



NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Control Wire
3 Cable 8mm²,4M(12.5 feet)
  Cable 8mm²,8M(25 feet)
4 Nut Cup(SW17)

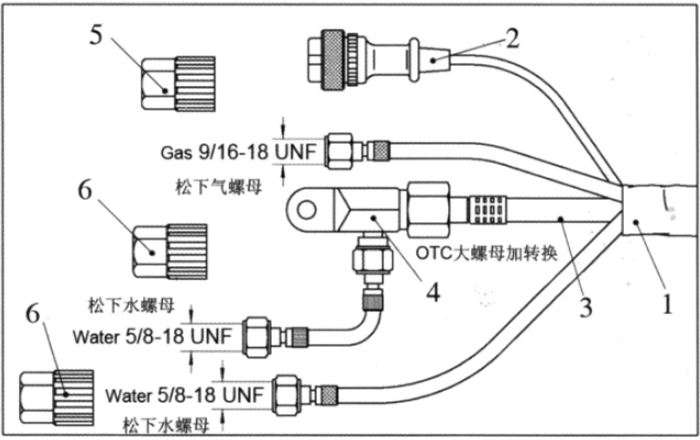

NO. Description
1 Cable Assembly Cover, For 4M(12.5 feet), Rubber/Jean
  Cable Assembly Cover, For 8M(25 feet), Rubber/Jean
2 Plug 2-pin,Panasonic
3 Cable 8mm²,4M(12.5 feet)
  Cable 8mm²,8M(25 feet)
4 Cable Adapter
5 Nut Cup(SW17)
6 Nut Cup(SW19)
